Продукція > COMUS > 3570.1421.122
3570.1421.122

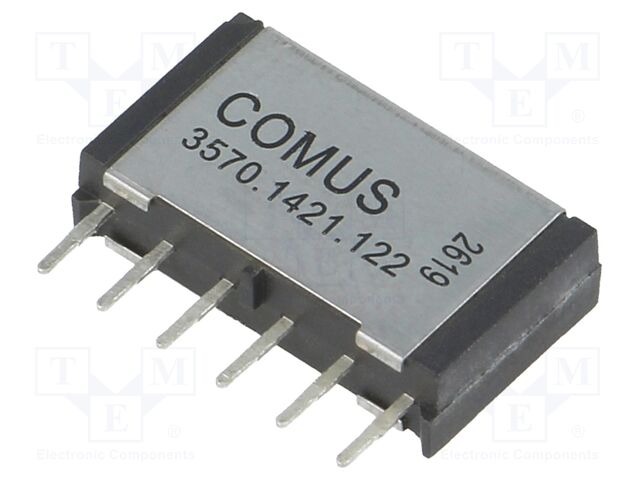

3570.1421.122 COMUS

pVersion=0046&contRep=ZT&docId=005056AB90B41ED9B9834133900320C4&compId=3570-1421.pdf?ci_sign=2d0e51e70eb6679217d13843311431f185a05a3b Виробник: COMUS
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; DPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W
Operating temperature: -40...85°C
Manufacturer series: 3570
Contacts configuration: DPST-NO
Optional equipment: electrostatic shield
Mounting: THT
Relay features: high reliability
Type of relay: reed switch
Case: SIP
Terminal pitch: 2.54mm
Body dimensions: 15.2x8.89x3.81mm
Contact resistance: 0.15Ω
Contact current max.: 0.5A
Coil voltage min.: 9V DC
Switching capacity: 10W
Rated coil voltage: 12V DC
Coil voltage max.: 16V DC
Switched voltage: max. 200V DC
Coil resistance: 750Ω
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис 3570.1421.122 COMUS

Category: Reed Electromagnetic Relays, Description: Relay: reed switch; DPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W, Operating temperature: -40...85°C, Manufacturer series: 3570, Contacts configuration: DPST-NO, Optional equipment: electrostatic shield, Mounting: THT, Relay features: high reliability, Type of relay: reed switch, Case: SIP, Terminal pitch: 2.54mm, Body dimensions: 15.2x8.89x3.81mm, Contact resistance: 0.15Ω, Contact current max.: 0.5A, Coil voltage min.: 9V DC, Switching capacity: 10W, Rated coil voltage: 12V DC, Coil voltage max.: 16V DC, Switched voltage: max. 200V DC, Coil resistance: 750Ω.
