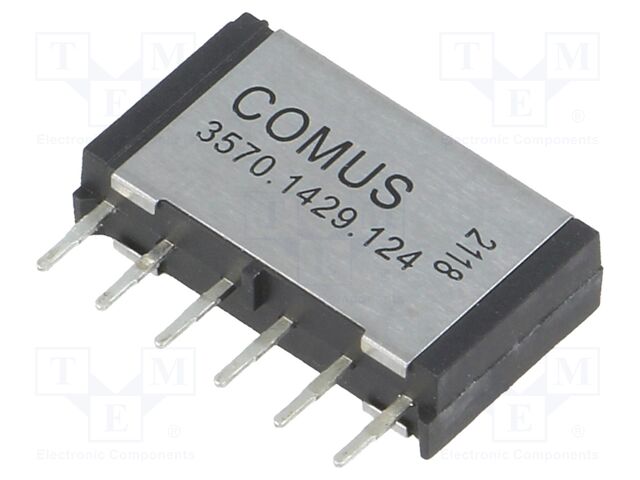

3570.1429.124 COMUS
Виробник: COMUS
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; DPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 15W; THT
Type of relay: reed switch
Contacts configuration: DPST-NO
Rated coil voltage: 12V DC
Contact current max.: 1A
Coil voltage min.: 9V DC
Coil voltage max.: 16V DC
Coil resistance: 750Ω
Switched voltage: max. 200V DC
Operating temperature: -40...85°C
Body dimensions: 15.2x8.89x3.81mm
Mounting: THT
Relay features: high reliability
Case: SIP
Contact resistance: 0.15Ω
Terminal pitch: 2.54mm
Manufacturer series: 3570
Optional equipment: diode; electrostatic shield
Switching capacity: 15W
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 501.14 грн |
| 90+ | 421.30 грн |
Відгуки про товар
Написати відгук
Технічний опис 3570.1429.124 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; DPST-NO; Ucoil: 12VDC; 1A; max.200VDC; 15W; THT, Type of relay: reed switch, Contacts configuration: DPST-NO, Rated coil voltage: 12V DC, Contact current max.: 1A, Coil voltage min.: 9V DC, Coil voltage max.: 16V DC, Coil resistance: 750Ω, Switched voltage: max. 200V DC, Operating temperature: -40...85°C, Body dimensions: 15.2x8.89x3.81mm, Mounting: THT, Relay features: high reliability, Case: SIP, Contact resistance: 0.15Ω, Terminal pitch: 2.54mm, Manufacturer series: 3570, Optional equipment: diode; electrostatic shield, Switching capacity: 15W.
