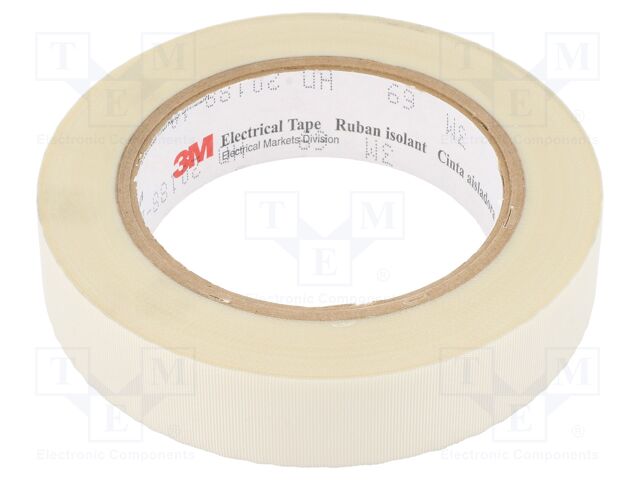

3M 69 25MM 33M
Виробник: 3M
Category: Insulating tapes
Description: Tape: electrical insulating; W: 25mm; L: 33m; Thk: 0.177mm; white
Type of tape: electrical insulating
Width: 25mm
Length: 33m
Thickness: 0.177mm
Kind of adhesive: silicone
Colour: white
Tape material: glass cloth
Resistance to: most of solvents
Adhesion to steel: 4.4N/cm
Elongation at rupture: 5%
Tape application: electrical insulation; high temperature applications; winding insulation
Tape features: enables labelling; self-extinguishing
Flammability rating: UL510
Shearing force: 314N
Max ambient temperature: 200°C
Dielectric strength: 3kV
Min. insulation resistance: 48GΩ
Conform to the norm: MIL-I-19166C
| Кількість | Ціна |
|---|---|
| 1+ | 2742.20 грн |
| 5+ | 2389.39 грн |
| 10+ | 2353.30 грн |
Відгуки про товар
Написати відгук
Технічний опис 3M 69 25MM 33M 3M
Category: Insulating tapes, Description: Tape: electrical insulating; W: 25mm; L: 33m; Thk: 0.177mm; white, Type of tape: electrical insulating, Width: 25mm, Length: 33m, Thickness: 0.177mm, Kind of adhesive: silicone, Colour: white, Tape material: glass cloth, Resistance to: most of solvents, Adhesion to steel: 4.4N/cm, Elongation at rupture: 5%, Tape application: electrical insulation; high temperature applications; winding insulation, Tape features: enables labelling; self-extinguishing, Flammability rating: UL510, Shearing force: 314N, Max ambient temperature: 200°C, Dielectric strength: 3kV, Min. insulation resistance: 48GΩ, Conform to the norm: MIL-I-19166C.
