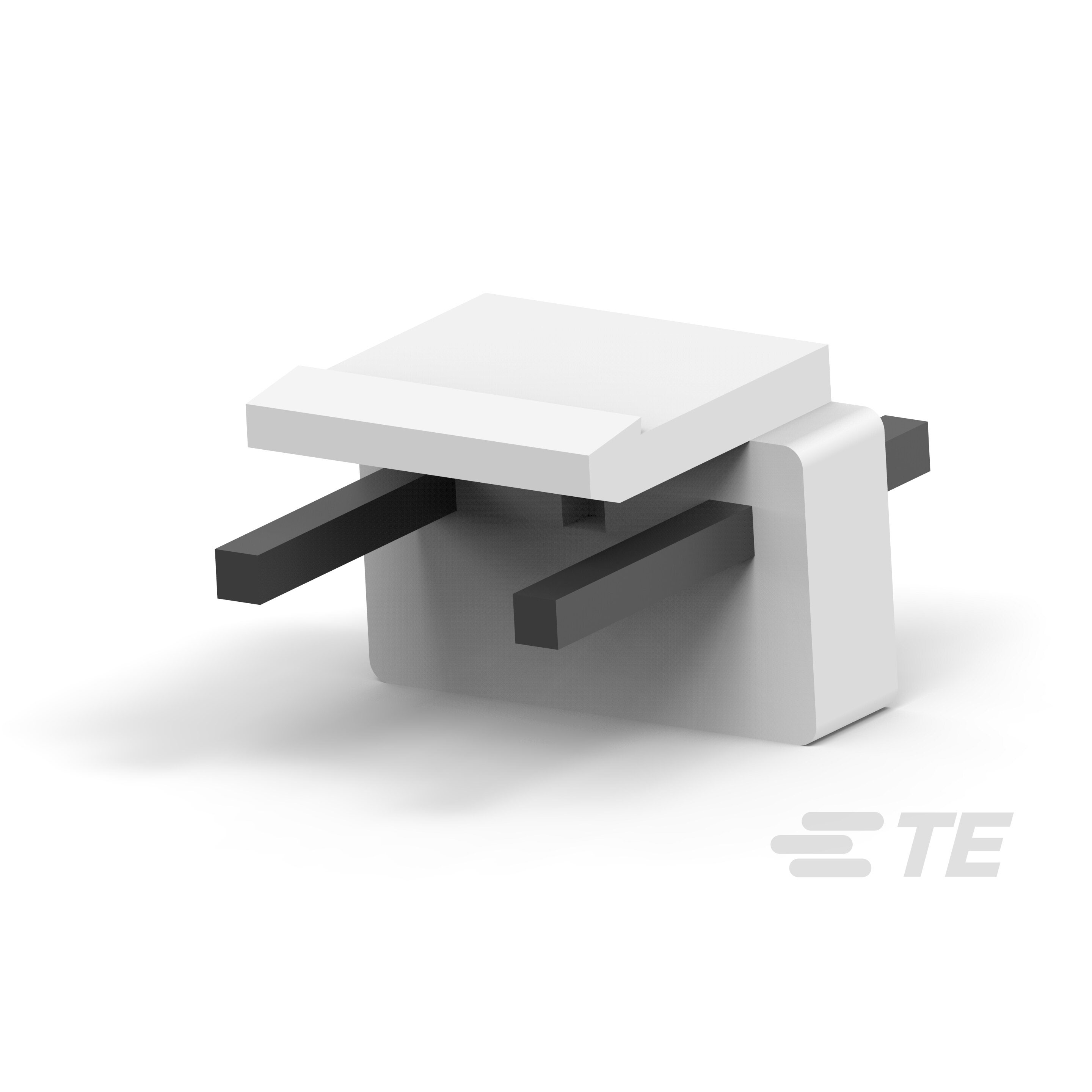

4-1744524-3 TE Connectivity AMP Connectors

Description: 3.96 EP HDR ASY 03P ,NO 2 PIN, G, Packaging: Bag, Connector Type: Header, Voltage Rating: 250VAC/DC, Current Rating (Amps): 8A, Mounting Type: Through Hole, Number of Positions: 3, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -25°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Friction Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Natural, Pitch - Mating: 0.156" (3.96mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 120.0µin (3.05µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.145" (3.68mm), Insulation Height: 0.370" (9.40mm), Shrouding: Shrouded - 1 Wall, Overall Contact Length: 0.575" (14.60mm), Insulation Material: Polyamide (PA), Nylon, Contact Length - Mating: 0.303" (7.70mm).
