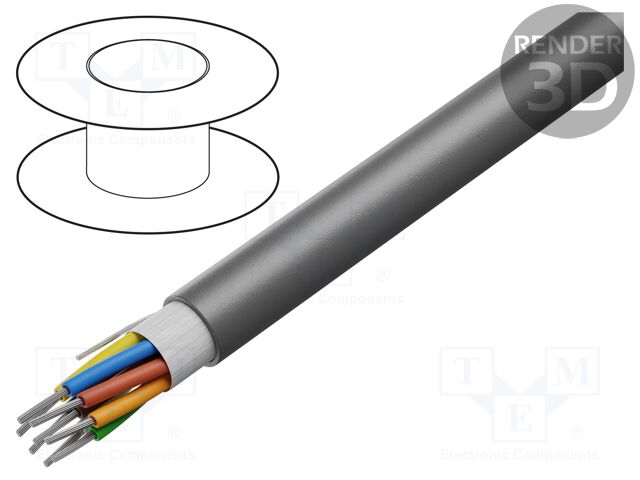

5080/30C SL001

5080/30C SL001 ALPHA WIRE


pVersion=0046&contRep=ZT&docId=005056AB281E1EDF879B889C21A3A0D6&compId=5080_30C.pdf?ci_sign=37f99dda62e0ee81252268fa1599ff90b7a6b1b6 Виробник: ALPHA WIRE
Category: Multicore Cables - Unshielded
Description: Wire; Xtra Guard® 1; 30x16AWG; unshielded; 300V; 305m; Cu; stranded
Operating temperature: -30...105°C
Conform to the norm: CSA CMG FT4; UL 1569; UL 2464; UL 2517; VW-1
Type of wire: control cable
Wire insulation material: PVC
Insulation colour: dark grey
Kind of core: Cu; tinned
Resistance to: flame; most of oils; UV rays
Kind of wire: Xtra Guard® 1
Shield structure: unshielded
Number of cores: 30
Core marking: colours without colour repetition
Cable external diameter: 17.62mm
Core diameter: 16AWG
Core structure: stranded
Earth core: none
CPR standard: no classification
Package contents: 305m
Package contents - ft: 1000ft
Ground: tinned copper strand 20AWG
Cable structure: 30x16AWG
Rated voltage: 300V
кількість в упаковці: 1 шт
товару немає в наявності

В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис 5080/30C SL001 ALPHA WIRE

Category: Multicore Cables - Unshielded, Description: Wire; Xtra Guard® 1; 30x16AWG; unshielded; 300V; 305m; Cu; stranded, Operating temperature: -30...105°C, Conform to the norm: CSA CMG FT4; UL 1569; UL 2464; UL 2517; VW-1, Type of wire: control cable, Wire insulation material: PVC, Insulation colour: dark grey, Kind of core: Cu; tinned, Resistance to: flame; most of oils; UV rays, Kind of wire: Xtra Guard® 1, Shield structure: unshielded, Number of cores: 30, Core marking: colours without colour repetition, Cable external diameter: 17.62mm, Core diameter: 16AWG, Core structure: stranded, Earth core: none, CPR standard: no classification, Package contents: 305m, Package contents - ft: 1000ft, Ground: tinned copper strand 20AWG, Cable structure: 30x16AWG, Rated voltage: 300V, кількість в упаковці: 1 шт.
