6415 SL002 ALPHA WIRE

Category: Multicore Cables - Shielded

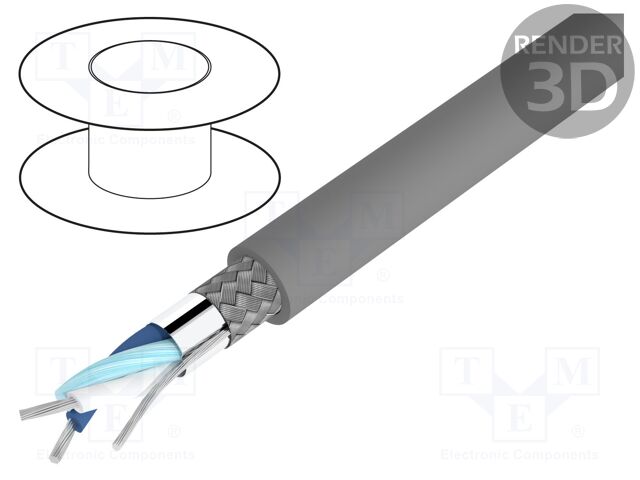

Description: Wire; Alpha Essential C&C; 2x4x24AWG; PVC; dark grey; 300V; 152m
Operating temperature: -20...80°C
Conform to the norm: CSA CM FT1; UL 2919; UL CM; VW-1
Type of wire: control cable
Wire insulation material: PVC
Insulation colour: dark grey
Kind of core: Cu; tinned
Kind of wire: Alpha Essential C&C
Shield structure: Al-PET foil; shielded twofold; tinned copper braid
Cable features: twisted pair conductors
Number of cores: 8
No. of pairs: 4
Core marking: colours with colour repetition
Cable external diameter: 8.08mm
Core diameter: 24AWG
Core structure: stranded
Earth core: none
CPR standard: no classification
Package contents: 152m
Minimal wire bend radius: 10xØ
Package contents - ft: 500ft
Ground: tinned copper strand 24AWG
Cable structure: 2x4x24AWG
Rated voltage: 300V
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 6415 SL002 ALPHA WIRE
Category: Multicore Cables - Shielded, Description: Wire; Alpha Essential C&C; 2x4x24AWG; PVC; dark grey; 300V; 152m, Operating temperature: -20...80°C, Conform to the norm: CSA CM FT1; UL 2919; UL CM; VW-1, Type of wire: control cable, Wire insulation material: PVC, Insulation colour: dark grey, Kind of core: Cu; tinned, Kind of wire: Alpha Essential C&C, Shield structure: Al-PET foil; shielded twofold; tinned copper braid, Cable features: twisted pair conductors, Number of cores: 8, No. of pairs: 4, Core marking: colours with colour repetition, Cable external diameter: 8.08mm, Core diameter: 24AWG, Core structure: stranded, Earth core: none, CPR standard: no classification, Package contents: 152m, Minimal wire bend radius: 10xØ, Package contents - ft: 500ft, Ground: tinned copper strand 24AWG, Cable structure: 2x4x24AWG, Rated voltage: 300V, кількість в упаковці: 1 шт.
