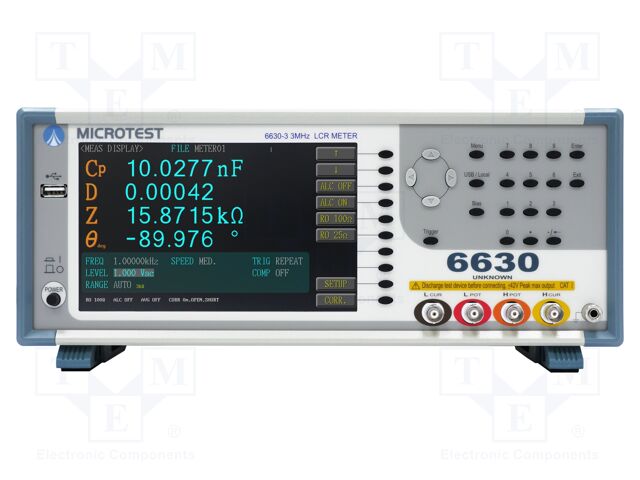

6630-03 MICROTEST
Виробник: MICROTESTCategory: LCR Meter
Description: LCR meter; Meas.accur: ±0.05%; LCD TFT 7"; 6 digits; 800x480
Type of meter: LCR meter
Kind of display used: LCD TFT 7"
Display parameters: 6 digits
Measurement: admittance; capacitance; conductance; DCR; dissipation factor D; equivalent series resistance (ESR); impedance; inductance; phase angle θ; quality factor Q; reactance; relative permeability; relative permittivity; resistance; susceptance
Interface: GPIB; HANDLER I/O; LAN; RS232; USB device; USB Host
Output impedance: 25Ω; 100Ω
Dimensions: 336x147x340mm
Measuring instrument features: 50 sets setting memory; ALC function- Automatic Level Control; auto component classification; BIN comparator function; cable compensation 0/ 0,5/ 1/ 2 m; displays up to 4 component parameters; open circuit/short circuit/load correction function; parallel or serial measurement; Test Signal Current Level 200μA-20mArms (resolution: 10μA); Test Signal Voltage Level 10mV-2Vrms (resolution: 1mV); ultra-high measuring speed < 3ms
Standard equipment: mains cable; measuring probe FX-000C19
Measurement frequency: 10Hz...3MHz
Operating temperature: 10...40°C
Supply voltage: 100...240V
Measurement accuracy: ±0.05%
Measurement time: < 0.003s
Display resolution: 800x480
Supply voltage frequency: 50/60Hz
на замовлення 2 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 333414.77 грн |
Відгуки про товар
Написати відгук
Технічний опис 6630-03 MICROTEST
Category: LCR Meter, Description: LCR meter; Meas.accur: ±0.05%; LCD TFT 7"; 6 digits; 800x480, Type of meter: LCR meter, Kind of display used: LCD TFT 7", Display parameters: 6 digits, Measurement: admittance; capacitance; conductance; DCR; dissipation factor D; equivalent series resistance (ESR); impedance; inductance; phase angle θ; quality factor Q; reactance; relative permeability; relative permittivity; resistance; susceptance, Interface: GPIB; HANDLER I/O; LAN; RS232; USB device; USB Host, Output impedance: 25Ω; 100Ω, Dimensions: 336x147x340mm, Measuring instrument features: 50 sets setting memory; ALC function- Automatic Level Control; auto component classification; BIN comparator function; cable compensation 0/ 0,5/ 1/ 2 m; displays up to 4 component parameters; open circuit/short circuit/load correction function; parallel or serial measurement; Test Signal Current Level 200μA-20mArms (resolution: 10μA); Test Signal Voltage Level 10mV-2Vrms (resolution: 1mV); ultra-high measuring speed < 3ms, Standard equipment: mains cable; measuring probe FX-000C19, Measurement frequency: 10Hz...3MHz, Operating temperature: 10...40°C, Supply voltage: 100...240V, Measurement accuracy: ±0.05%, Measurement time: < 0.003s, Display resolution: 800x480, Supply voltage frequency: 50/60Hz, кількість в упаковці: 1 шт.
