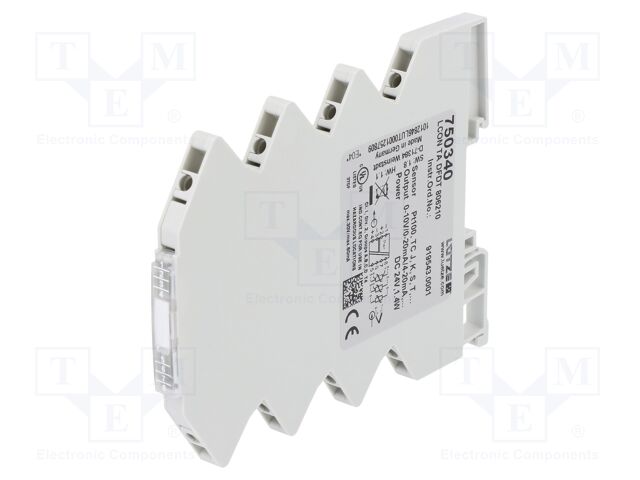

750340 LÜTZE

Category: Temperature Transducers, Description: Converter: temperature; Usup: 24VDC; 6.2x90x115.5mm; IP20; LCIS, Controlled parameter: temperature, Kind of output 1: 0...10V; 0...20mA; 4...20mA; -10...+10V, Kind of input 1: Pt100; Pt1000; RTD; thermocouple B; thermocouple C; thermocouple E; thermocouple J; thermocouple K; thermocouple N; thermocouple R; thermocouple S; thermocouple T, Mounting: for DIN rail mounting, Manufacturer series: LCIS, Operating temperature: -40...70°C, Supply voltage: 24V DC, The programming method: DIP-SWITCH, Body dimensions: 6.2x90x115.5mm, IP rating: IP20, Controlled parameter range: -220...2310°C, Additional functions: inputs / outputs / power supply galvanic insulation; LED status indicator, Protection: anti-overvoltage OVP; short circuit protection SCP, Input 1 properties: 2 wires connection; 3 wires connection; 4 wires connection, Leads: screw terminals, Operating voltage: 16.8...30V DC, Type of converter: temperature, Insulation voltage: 2.5kV.
