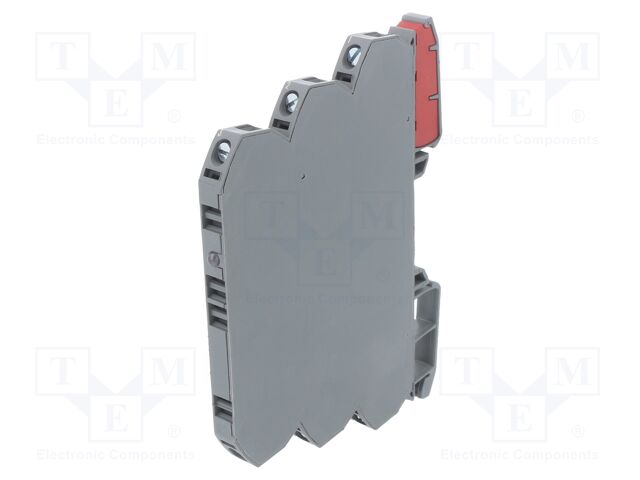

750819.0000 LÜTZE

Category: Temperature Transducers, Description: Converter: temperature; Usup: 24VDC; Usup: 24VAC; IN 1: Pt100; IP20, Mounting: for DIN rail mounting, Operating temperature: -25...60°C, Supply voltage: 24V AC; 24V DC, Additional functions: inputs / outputs galvanic insulation; LED status indicator, IP rating: IP20, Manufacturer series: LCIS, Leads: screw terminals, Controlled parameter: temperature, Controlled parameter range: -50...400°C, Body dimensions: 6.2x93x73mm, Operating voltage: 18...31.2V DC; 19.2...26.4V AC, Insulation voltage: 2.5kV, Kind of input 1: Pt100, Kind of output 1: 0...10V; 0...20mA; 4...20mA, Input 1 properties: 2 wires connection; 3 wires connection, Type of converter: temperature, Protection: anti-overvoltage OVP; short circuit protection SCP, The programming method: DIP-SWITCH.
