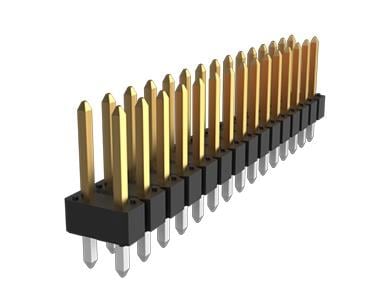

77313-185-14LF Amphenol FCI

Description: CONN HEADER VERT 14POS 2.54MM, Packaging: Bag, Connector Type: Header, Breakaway, Current Rating (Amps): 3A per Contact, Mounting Type: Through Hole, Number of Positions: 14, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -65°C ~ 130°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold or Gold, GXT™, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.114" (2.90mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.626" (15.90mm), Insulation Material: Thermoplastic, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.413" (10.50mm).
