83332E 0091000 BELDEN
Виробник: BELDENCategory: Heat resistant cables

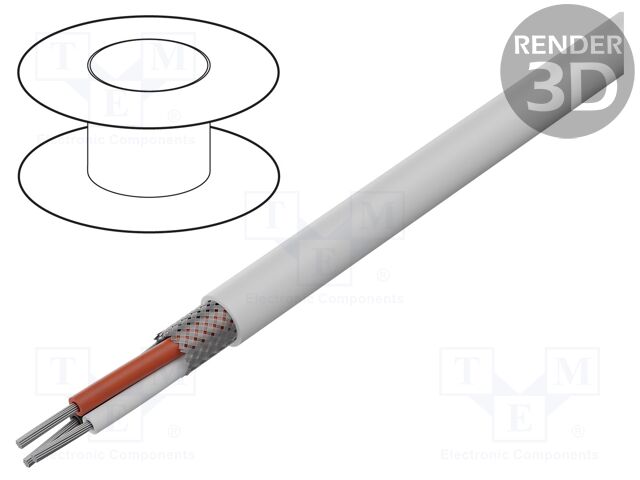

Description: Wire; 3x26AWG; stranded; Cu; TFE; white; -65÷200°C; 600V; CPR: Fca
Rated voltage: 600V
Operating temperature: -65...200°C
Conform to the norm: MIL-W-16878/4 (Type E); NEMA HP3
Type of wire: control cable
Wire insulation material: TFE
Insulation colour: white
Kind of core: Cu; silver plated
Shield structure: shielded; silver plated copper braid
Number of cores: 3
Core marking: colours without colour repetition
Cable external diameter: 3.23mm
Core diameter: 26AWG
Core structure: stranded
CPR standard: Fca
Package contents: 305m
Package contents - ft: 1000ft
Cable structure: 3x26AWG
кількість в упаковці: 305 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 83332E 0091000 BELDEN
Category: Heat resistant cables, Description: Wire; 3x26AWG; stranded; Cu; TFE; white; -65÷200°C; 600V; CPR: Fca, Rated voltage: 600V, Operating temperature: -65...200°C, Conform to the norm: MIL-W-16878/4 (Type E); NEMA HP3, Type of wire: control cable, Wire insulation material: TFE, Insulation colour: white, Kind of core: Cu; silver plated, Shield structure: shielded; silver plated copper braid, Number of cores: 3, Core marking: colours without colour repetition, Cable external diameter: 3.23mm, Core diameter: 26AWG, Core structure: stranded, CPR standard: Fca, Package contents: 305m, Package contents - ft: 1000ft, Cable structure: 3x26AWG, кількість в упаковці: 305 шт.
