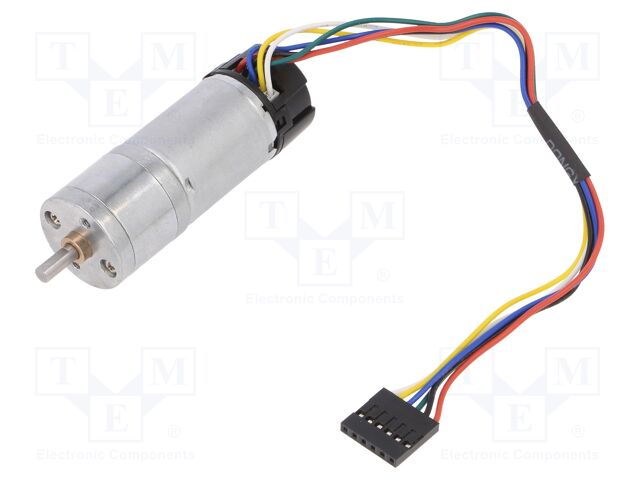

99:1 METAL GEARMOTOR 25DX69L MM HP 12V W POLOLU
Виробник: POLOLU
Category: DC Motors
Description: Motor: DC; with encoder,with gearbox; Medium Power; 12VDC; 5.6A
Type of motor: DC
Kind of motor: with encoder; with gearbox
Manufacturer series: Medium Power
Supply voltage: 12V DC
Max. operating current: 5.6A
Shaft surface: D spring
Nominal rot. speed measured after gear: 100rpm
Torque: max. 2118.46mNm
Gear: 98.78:1
Shaft diameter: 4mm
Operating current: 0.3A
Resolution: 48imp/revol.
Kind of sensor: encoder
Body dimensions: Ø25x69mm
Information: product is not a working device, but only component
