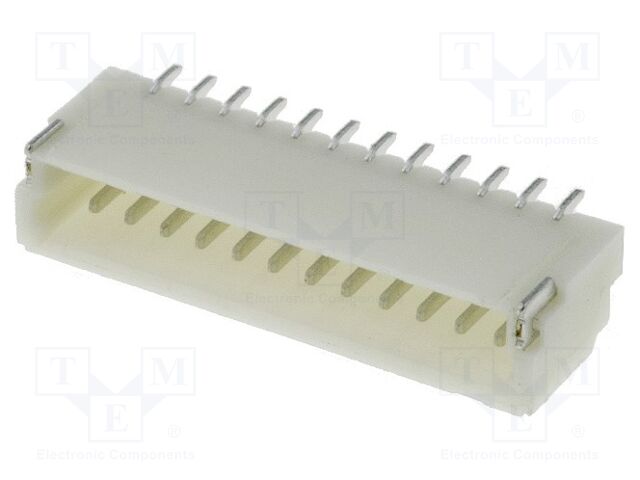

A1001WR-S-12P

A1001WR-S-12P JOINT TECH

A1001WR-S-XP---12B5.pdf
Виробник: JOINT TECH
Category: Raster signal connectors 1,00mm
Description: Connector: wire-board; socket; male; 1A; 50V; PIN: 12; SMT; 1mm; 20mΩ
Type of connector: wire-board
Connector: socket
Kind of connector: male
Rated voltage: 50V
Number of pins: 12
Contacts pitch: 1mm
Flammability rating: UL94V-0
Test voltage: 0.5kV
Body material: polyamide
Connector pinout layout: 1x12
Operating temperature: -25...85°C
Contact plating: tinned
Spatial orientation: horizontal
Contact material: phosphor bronze
Current rating: 1A
Electrical mounting: SMT
Max. contact resistance:: 20mΩ
товару немає в наявності
Мінімальне замовлення: 5000 шт
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис A1001WR-S-12P JOINT TECH

Category: Raster signal connectors 1,00mm, Description: Connector: wire-board; socket; male; 1A; 50V; PIN: 12; SMT; 1mm; 20mΩ, Type of connector: wire-board, Connector: socket, Kind of connector: male, Rated voltage: 50V, Number of pins: 12, Contacts pitch: 1mm, Flammability rating: UL94V-0, Test voltage: 0.5kV, Body material: polyamide, Connector pinout layout: 1x12, Operating temperature: -25...85°C, Contact plating: tinned, Spatial orientation: horizontal, Contact material: phosphor bronze, Current rating: 1A, Electrical mounting: SMT, Max. contact resistance:: 20mΩ.
