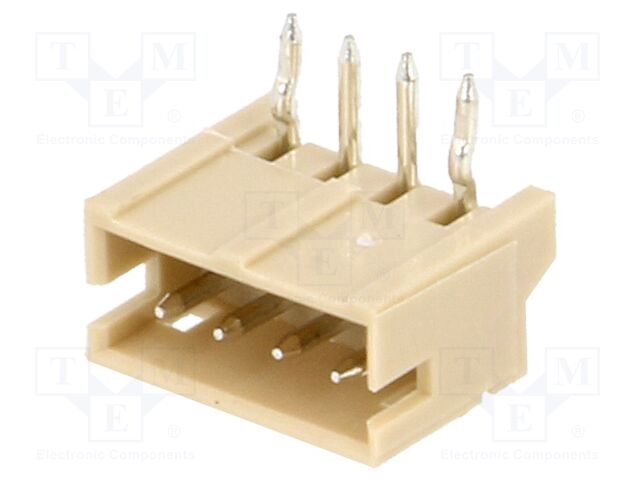

A1500WR-4P JOINT TECH
Виробник: JOINT TECHCategory: Raster signal connectors 1,50mm
Description: Connector: wire-board; socket; male; PIN: 4; 1A; Urated: 100V; THT
Type of connector: wire-board
Connector: socket
Kind of connector: male
Number of pins: 4
Current rating: 1A
Rated voltage: 100V
Spatial orientation: angled 90°
Electrical mounting: THT
Contacts pitch: 1.5mm
Connector pinout layout: 1x4
Contact plating: tinned
Flammability rating: UL94V-0
Body material: polyamide
Contact material: brass
Test voltage: 0.5kV
Max. contact resistance:: 20mΩ
Operating temperature: -25...85°C
кількість в упаковці: 10000 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис A1500WR-4P JOINT TECH
Category: Raster signal connectors 1,50mm, Description: Connector: wire-board; socket; male; PIN: 4; 1A; Urated: 100V; THT, Type of connector: wire-board, Connector: socket, Kind of connector: male, Number of pins: 4, Current rating: 1A, Rated voltage: 100V, Spatial orientation: angled 90°, Electrical mounting: THT, Contacts pitch: 1.5mm, Connector pinout layout: 1x4, Contact plating: tinned, Flammability rating: UL94V-0, Body material: polyamide, Contact material: brass, Test voltage: 0.5kV, Max. contact resistance:: 20mΩ, Operating temperature: -25...85°C, кількість в упаковці: 10000 шт.
Інші пропозиції A1500WR-4P
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
|
|
A1500WR-4P | Виробник : JOINT TECH |
Category: Raster signal connectors 1,50mm Description: Connector: wire-board; socket; male; PIN: 4; 1A; Urated: 100V; THT Type of connector: wire-board Connector: socket Kind of connector: male Number of pins: 4 Current rating: 1A Rated voltage: 100V Spatial orientation: angled 90° Electrical mounting: THT Contacts pitch: 1.5mm Connector pinout layout: 1x4 Contact plating: tinned Flammability rating: UL94V-0 Body material: polyamide Contact material: brass Test voltage: 0.5kV Max. contact resistance:: 20mΩ Operating temperature: -25...85°C |
товару немає в наявності |
