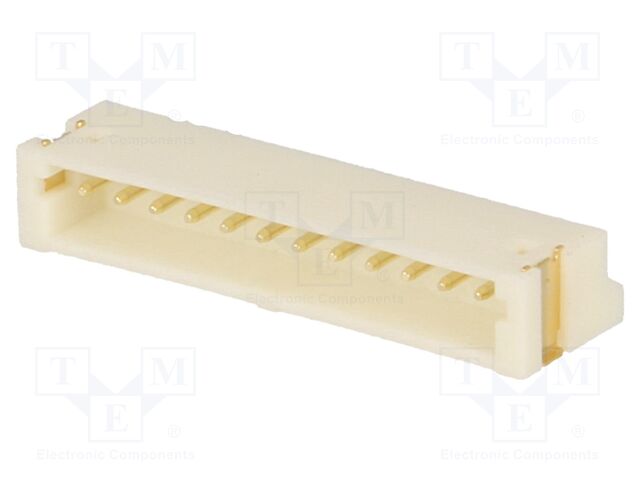

A1500WR-S-12P JOINT TECH
Виробник: JOINT TECH
Category: Raster signal connectors 1,50mm
Description: Connector: wire-board; socket; male; PIN: 12; 1A; Urated: 100V; SMT
Connector: socket
Body material: polyamide
Electrical mounting: SMT
Flammability rating: UL94V-0
Type of connector: wire-board
Operating temperature: -25...85°C
Contacts pitch: 1.5mm
Max. contact resistance:: 20mΩ
Current rating: 1A
Number of pins: 12
Rated voltage: 100V
Test voltage: 0.5kV
Connector pinout layout: 1x12
Spatial orientation: horizontal
Contact material: brass
Kind of connector: male
Contact plating: tinned
кількість в упаковці: 10000 шт
Category: Raster signal connectors 1,50mm
Description: Connector: wire-board; socket; male; PIN: 12; 1A; Urated: 100V; SMT
Connector: socket
Body material: polyamide
Electrical mounting: SMT
Flammability rating: UL94V-0
Type of connector: wire-board
Operating temperature: -25...85°C
Contacts pitch: 1.5mm
Max. contact resistance:: 20mΩ
Current rating: 1A
Number of pins: 12
Rated voltage: 100V
Test voltage: 0.5kV
Connector pinout layout: 1x12
Spatial orientation: horizontal
Contact material: brass
Kind of connector: male
Contact plating: tinned
кількість в упаковці: 10000 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис A1500WR-S-12P JOINT TECH
Category: Raster signal connectors 1,50mm, Description: Connector: wire-board; socket; male; PIN: 12; 1A; Urated: 100V; SMT, Connector: socket, Body material: polyamide, Electrical mounting: SMT, Flammability rating: UL94V-0, Type of connector: wire-board, Operating temperature: -25...85°C, Contacts pitch: 1.5mm, Max. contact resistance:: 20mΩ, Current rating: 1A, Number of pins: 12, Rated voltage: 100V, Test voltage: 0.5kV, Connector pinout layout: 1x12, Spatial orientation: horizontal, Contact material: brass, Kind of connector: male, Contact plating: tinned, кількість в упаковці: 10000 шт.
