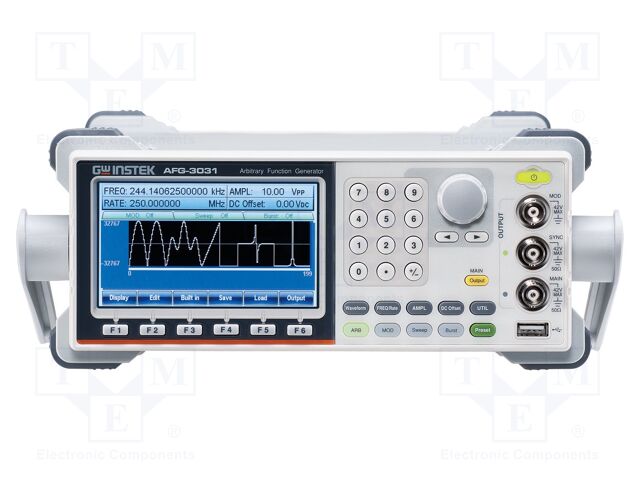

AFG-3031 GW INSTEK
Виробник: GW INSTEKCategory: Generators and Frequency Meters
Description: Generator: arbitrary, function; 30MHz; colour,LCD TFT 4,3"; Ch: 1
Kind of modulation: AM; FM; FSK; MSK; PSK; PWM; QAM; SUM
Waveforms: arbitrary; cardiac; DC; ECG1; ECG2; ECG3; harmonic; ignition; impulse; ISO7637-2 TP2B; ISO7637-2 TP3A; ISO7637-2 TP3B; noise; rectangular; sinus; triangle
Type of laboratory generator: arbitrary, function
Standard equipment: BNC cable
Kind of display used: colour; LCD TFT 4,3"
Interface: LAN; USB
Output parameters: impedance: 50Ω
Software: included
Dimensions: 265x107x374mm
Number of channels: 1
Vertical resolution: 16bit
Supply voltage: 100...240V AC
Memory record length: 8Mpts
Maximum waveform frequency: 30MHz
Waveform frequency range: 1µHz...1MHz (ramp waveform); 1µHz...1MHz (triangle waveform); 1µHz...25MHz (pulse waveform); 1µHz...30MHz (rectangular waveform); 1µHz...30MHz (sinus waveform); 1µHz...40MHz (arbitrary waveform)
Measuring instrument features: 10 sets memory; possibility to connect 4 units in series or 6 in parallel
Sampling: 250Msps
Manufacturer series: AFG-3000
