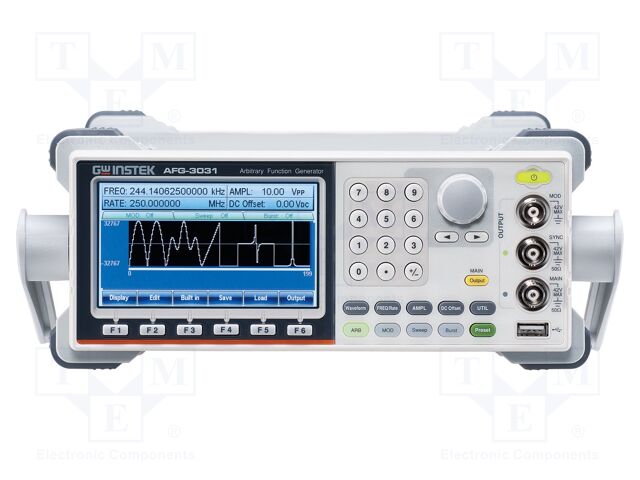

AFG-3031GP GW INSTEK
Виробник: GW INSTEKCategory: Generators and Frequency Meters
Description: Generator: arbitrary, function; 30MHz; colour,LCD TFT 4,3"; Ch: 1
Kind of display used: colour; LCD TFT 4,3"
Supply voltage: 100...240V AC
Interface: GPIB; LAN; USB
Number of channels: 1
Dimensions: 265x107x374mm
Standard equipment: BNC cable
Measuring instrument features: 10 sets memory; possibility to connect 4 units in series or 6 in parallel
Sampling: 250Msps
Waveform frequency range: 1µHz...1MHz (ramp waveform); 1µHz...1MHz (triangle waveform); 1µHz...25MHz (pulse waveform); 1µHz...30MHz (rectangular waveform); 1µHz...30MHz (sinus waveform); 1µHz...40MHz (arbitrary waveform)
Output parameters: impedance: 50Ω
Vertical resolution: 16bit
Kind of modulation: AM; FM; FSK; MSK; PSK; PWM; QAM; SUM
Manufacturer series: AFG-3000
Waveforms: arbitrary; burst; cardiac; DC; ECG1; ECG2; ECG3; harmonic; ignition; impulse; ISO7637-2 TP2B; ISO7637-2 TP3A; ISO7637-2 TP3B; noise; rectangular; sinus; sweep; triangle
Maximum waveform frequency: 30MHz
Software: included
Memory record length: 8Mpts
Type of laboratory generator: arbitrary, function
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис AFG-3031GP GW INSTEK
Category: Generators and Frequency Meters, Description: Generator: arbitrary, function; 30MHz; colour,LCD TFT 4,3"; Ch: 1, Kind of display used: colour; LCD TFT 4,3", Supply voltage: 100...240V AC, Interface: GPIB; LAN; USB, Number of channels: 1, Dimensions: 265x107x374mm, Standard equipment: BNC cable, Measuring instrument features: 10 sets memory; possibility to connect 4 units in series or 6 in parallel, Sampling: 250Msps, Waveform frequency range: 1µHz...1MHz (ramp waveform); 1µHz...1MHz (triangle waveform); 1µHz...25MHz (pulse waveform); 1µHz...30MHz (rectangular waveform); 1µHz...30MHz (sinus waveform); 1µHz...40MHz (arbitrary waveform), Output parameters: impedance: 50Ω, Vertical resolution: 16bit, Kind of modulation: AM; FM; FSK; MSK; PSK; PWM; QAM; SUM, Manufacturer series: AFG-3000, Waveforms: arbitrary; burst; cardiac; DC; ECG1; ECG2; ECG3; harmonic; ignition; impulse; ISO7637-2 TP2B; ISO7637-2 TP3A; ISO7637-2 TP3B; noise; rectangular; sinus; sweep; triangle, Maximum waveform frequency: 30MHz, Software: included, Memory record length: 8Mpts, Type of laboratory generator: arbitrary, function, кількість в упаковці: 1 шт.
