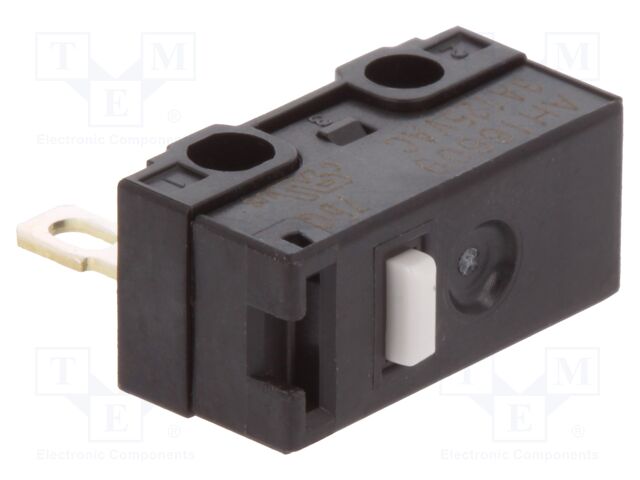

AH16609AT PANASONIC

Category: Microswitches SNAP ACTION, Description: Microswitch SNAP ACTION; 3A/125VAC; 2A/30VDC; without lever, Contacts configuration: SPDT, Switches features: without lever, Operating temperature: -25...85°C, Body dimensions: 12.8x6x7mm, Max. contact resistance:: 30mΩ, Operating Force: 1.47N, Stable positions number: 1, DC contacts rating @R: 2A / 30V DC, AC contacts rating @R: 3A / 125V AC, Number of positions: 2, Electrical life: 30000 cycles, Mechanical durability: 500000 cycles, Min. insulation resistance: 0.1GΩ, Contact material: AgNi, Manufacturer series: AH1, Leads: for soldering, Type of switch: microswitch SNAP ACTION, Switching method: ON-(ON).
