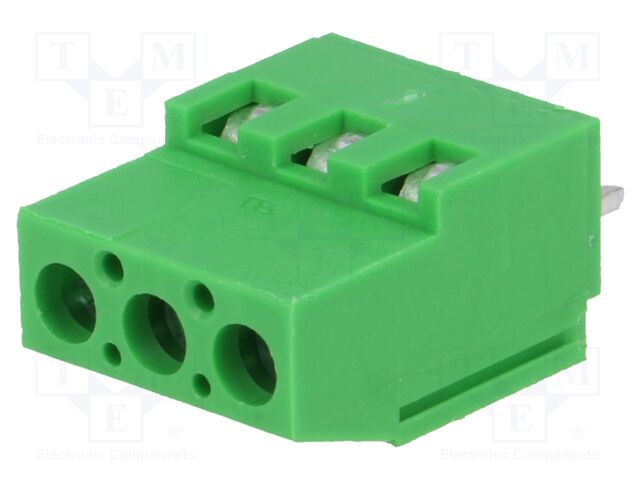

AK700/3-5,0-V/GRUEN

AK700/3-5,0-V/GRUEN PTR MESSTECHNIK

AK700.pdf
Виробник: PTR MESSTECHNIK
Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 24A; 250V; angled 90°
Type of connector: PCB terminal block
Connector: terminal
Spatial orientation: angled 90°
Mechanical mounting: on PCBs
Electrical mounting: cage clamp; screw terminal; THT
Contact material: brass
Colour: green
Body material: polyamide 66
Contacts pitch: 5mm
Number of ways: 3
Connectors features: assembling possibility
Flammability rating: UL94V-0
Operating temperature: -30...105°C
Wire cross-section: 0.5...4mm2
Depth: 10.5mm
Height: 19mm
Length: 15mm
Current rating: 24A
Wire size: 30AWG...12AWG
Rated voltage: 0.25kV
Connector pinout layout: 1x3
Connector variant: with wire protector
Conform to the norm: UL; VDE
на замовлення 648 шт:
термін постачання 14-30 дні (днів)
КількістьЦіна без ПДВ
7+68.75 грн
10+52.57 грн
50+47.01 грн
200+41.70 грн
500+37.31 грн
Мінімальне замовлення: 7 шт
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис AK700/3-5,0-V/GRUEN PTR MESSTECHNIK

Category: PCB terminal blocks, Description: Connector: PCB terminal block; terminal; 24A; 250V; angled 90°, Type of connector: PCB terminal block, Connector: terminal, Spatial orientation: angled 90°, Mechanical mounting: on PCBs, Electrical mounting: cage clamp; screw terminal; THT, Contact material: brass, Colour: green, Body material: polyamide 66, Contacts pitch: 5mm, Number of ways: 3, Connectors features: assembling possibility, Flammability rating: UL94V-0, Operating temperature: -30...105°C, Wire cross-section: 0.5...4mm2, Depth: 10.5mm, Height: 19mm, Length: 15mm, Current rating: 24A, Wire size: 30AWG...12AWG, Rated voltage: 0.25kV, Connector pinout layout: 1x3, Connector variant: with wire protector, Conform to the norm: UL; VDE.
