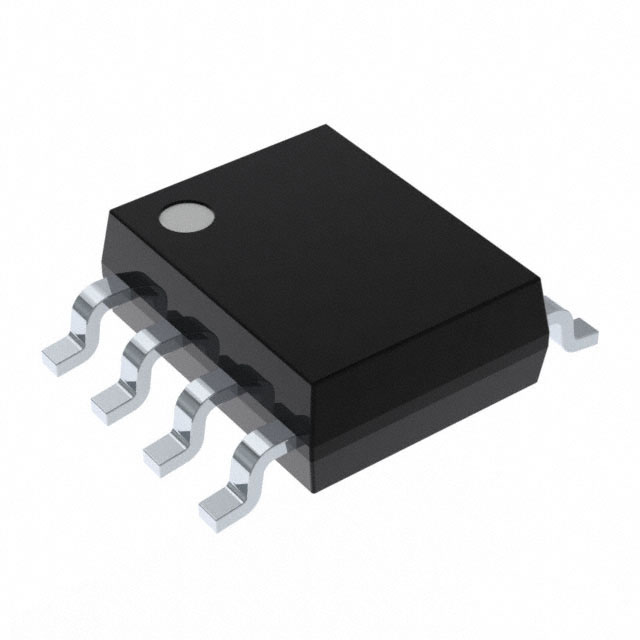

AM4424N Analog Power Inc.
Виробник: Analog Power Inc.Description: MOSFET N-CH 20V 9.7A SO-8
Packaging: Bulk
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 9.7A (Ta)
Rds On (Max) @ Id, Vgs: 22mOhm @ 9.7A, 4.5V
Power Dissipation (Max): 3.1W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-SO
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
Vgs (Max): ±8V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 5.5 nC @ 4.5 V
на замовлення 1 шт:
термін постачання 21-31 дні (днів)
Відгуки про товар
Написати відгук
Технічний опис AM4424N Analog Power Inc.
Description: MOSFET N-CH 20V 9.7A SO-8, Packaging: Bulk, Package / Case: 8-SOIC (0.154", 3.90mm Width), Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 9.7A (Ta), Rds On (Max) @ Id, Vgs: 22mOhm @ 9.7A, 4.5V, Power Dissipation (Max): 3.1W (Ta), Vgs(th) (Max) @ Id: 1V @ 250µA, Supplier Device Package: 8-SO, Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V, Vgs (Max): ±8V, Drain to Source Voltage (Vdss): 30 V, Gate Charge (Qg) (Max) @ Vgs: 5.5 nC @ 4.5 V.
