AM4842N

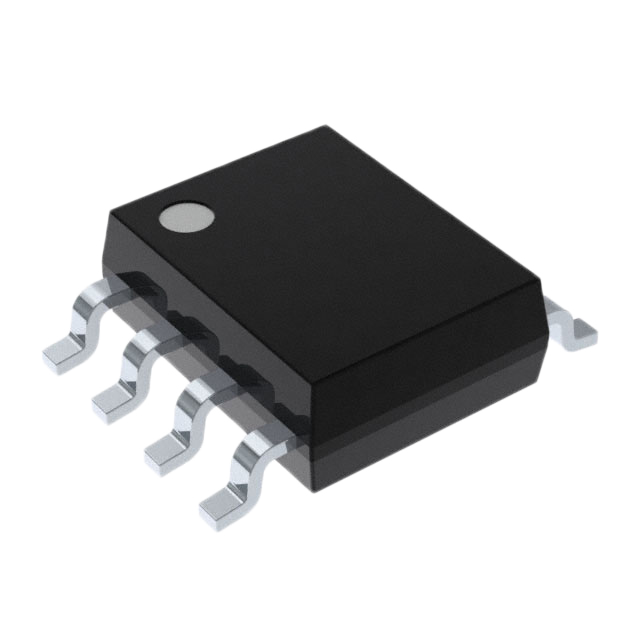

AM4842N Analog Power Inc.

AM4842N.pdf Виробник: Analog Power Inc.
Description: MOSFET N-CH 40V 13.8A SOIC-8
Packaging: Bulk
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 13.8A (Ta)
Rds On (Max) @ Id, Vgs: 11mOhm @ 11A, 10V
Power Dissipation (Max): 3.1W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: 8-SO
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 737 pF @ 15 V
на замовлення 2500 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
8+45.25 грн
11+29.13 грн
100+26.19 грн
500+19.12 грн
1000+15.71 грн
2500+13.66 грн
Мінімальне замовлення: 8
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис AM4842N Analog Power Inc.

Description: MOSFET N-CH 40V 13.8A SOIC-8, Packaging: Bulk, Package / Case: 8-SOIC (0.154", 3.90mm Width), Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 13.8A (Ta), Rds On (Max) @ Id, Vgs: 11mOhm @ 11A, 10V, Power Dissipation (Max): 3.1W (Ta), Vgs(th) (Max) @ Id: 1V @ 250µA, Supplier Device Package: 8-SO, Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 40 V, Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 4.5 V, Input Capacitance (Ciss) (Max) @ Vds: 737 pF @ 15 V.
