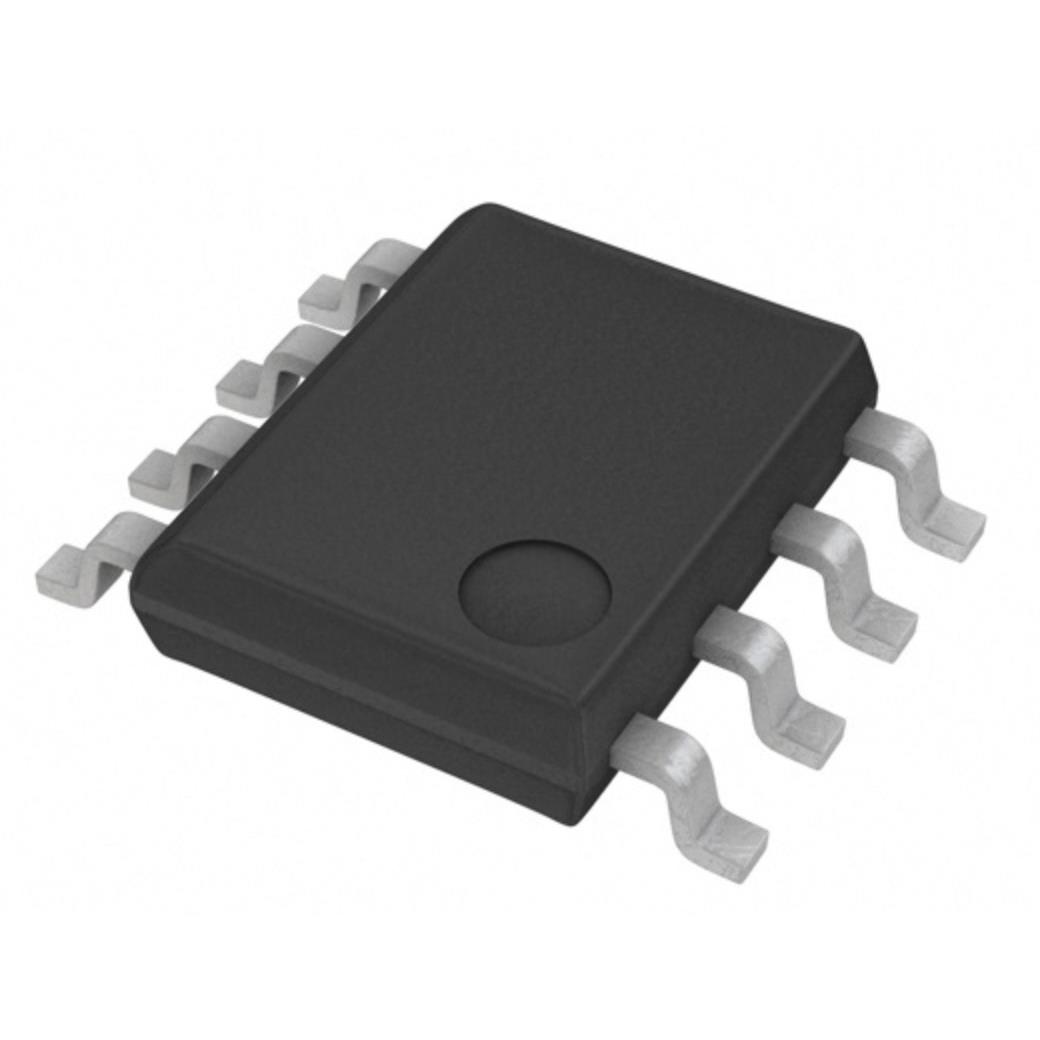

AM6930N Analog Power Inc.

Description: MOSFET N-CH 30V 6.8A SO-8, Packaging: Bulk, Package / Case: TSSOP-8, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 150°C (TJ), Technology: MOSFET (Metal Oxide), FET Type: N-Channel, Current - Continuous Drain (Id) @ 25°C: 6.8A (Ta), Rds On (Max) @ Id, Vgs: 22mOhm @ 5A, 10V, Power Dissipation (Max): 1.5W (Ta), Vgs(th) (Max) @ Id: 1V @ 250µA (Min), Supplier Device Package: TSSOP-8, Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V, Vgs (Max): ±20V, Drain to Source Voltage (Vdss): 30 V, Gate Charge (Qg) (Max) @ Vgs: 5 nC @ 4.5 V, Input Capacitance (Ciss) (Max) @ Vds: 439 pF @ 15 V, Voltage Coupled to Gate Charge (Qg) (Max) @ Vgs: 4.5, Voltage Coupled to Input Capacitance (Ciss) (Max) @ Vds: 15.0.
