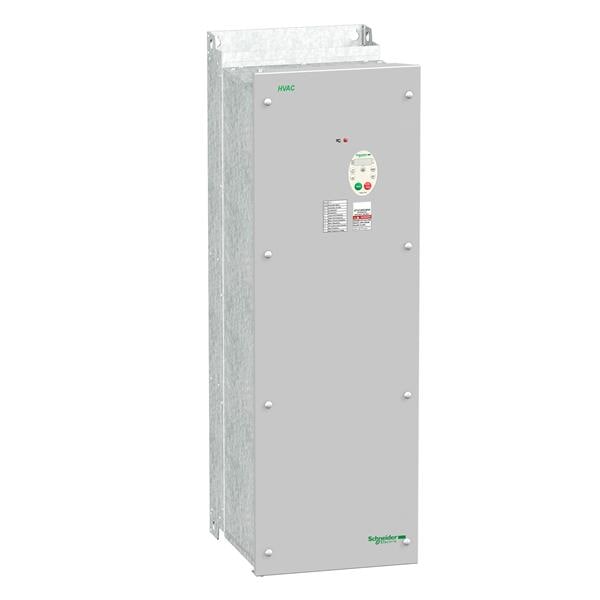

ATV212WD37N4C SCHNEIDER ELECTRIC
Виробник: SCHNEIDER ELECTRIC
Category: Three Phase Inverters
Description: Vector inverter; 37kW; 3x400VAC; 3x380÷480VAC; 0÷10VDC; 0.5÷200Hz
Type of module: vector inverter
Max motor power: 37kW
Inverter output voltage: 3 x 400V AC
The programming method: PC; push-buttons
Electrical connection: screw terminals
Additional functions: PID regulator
Protection: anti-overload OLP; anti-overload OPP; anti-overvoltage OVP; motor blockade; motor earth fault; overheating OTP; undervoltage UVP
Mounting: for wall mounting
Operating temperature: -10...40°C
Output frequency: 0.5...200Hz
Number of analog inputs: 2
Number of analog outputs: 1
Current rating: 79A
IP rating: IP55
Current output: 0...20mA
Manufacturer series: ATV212
Related items: TCSMCNAM3M002P
Application: fans; for pump
Driver features: integrated EMC filter
Voltage output: 0...10V DC
Trade name: Altivar
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of digital inputs: 3
Number of digital outputs: 2
Dimensions: 343x284x880mm
Communictions protocol: BACnet/IP; Modbus
кількість в упаковці: 1 шт
Category: Three Phase Inverters
Description: Vector inverter; 37kW; 3x400VAC; 3x380÷480VAC; 0÷10VDC; 0.5÷200Hz
Type of module: vector inverter
Max motor power: 37kW
Inverter output voltage: 3 x 400V AC
The programming method: PC; push-buttons
Electrical connection: screw terminals
Additional functions: PID regulator
Protection: anti-overload OLP; anti-overload OPP; anti-overvoltage OVP; motor blockade; motor earth fault; overheating OTP; undervoltage UVP
Mounting: for wall mounting
Operating temperature: -10...40°C
Output frequency: 0.5...200Hz
Number of analog inputs: 2
Number of analog outputs: 1
Current rating: 79A
IP rating: IP55
Current output: 0...20mA
Manufacturer series: ATV212
Related items: TCSMCNAM3M002P
Application: fans; for pump
Driver features: integrated EMC filter
Voltage output: 0...10V DC
Trade name: Altivar
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of digital inputs: 3
Number of digital outputs: 2
Dimensions: 343x284x880mm
Communictions protocol: BACnet/IP; Modbus
кількість в упаковці: 1 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис ATV212WD37N4C SCHNEIDER ELECTRIC
Category: Three Phase Inverters, Description: Vector inverter; 37kW; 3x400VAC; 3x380÷480VAC; 0÷10VDC; 0.5÷200Hz, Type of module: vector inverter, Max motor power: 37kW, Inverter output voltage: 3 x 400V AC, The programming method: PC; push-buttons, Electrical connection: screw terminals, Additional functions: PID regulator, Protection: anti-overload OLP; anti-overload OPP; anti-overvoltage OVP; motor blockade; motor earth fault; overheating OTP; undervoltage UVP, Mounting: for wall mounting, Operating temperature: -10...40°C, Output frequency: 0.5...200Hz, Number of analog inputs: 2, Number of analog outputs: 1, Current rating: 79A, IP rating: IP55, Current output: 0...20mA, Manufacturer series: ATV212, Related items: TCSMCNAM3M002P, Application: fans; for pump, Driver features: integrated EMC filter, Voltage output: 0...10V DC, Trade name: Altivar, Voltage between phases (for three phase system): 3 x 380...480V AC, Number of digital inputs: 3, Number of digital outputs: 2, Dimensions: 343x284x880mm, Communictions protocol: BACnet/IP; Modbus, кількість в упаковці: 1 шт.
Інші пропозиції ATV212WD37N4C
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
---|---|---|---|---|---|
ATV212WD37N4C | Виробник : Schneider Electric |
Description: VARIABLE SPEED DRIVE ATV212 - 37 Packaging: Box Mounting Type: Chassis Mount Current - Output: 79A Interface: RS-485 Type: Module Operating Temperature: -10°C ~ 50°C Voltage - Supply: 323V ~ 528V Voltage - Load: 380 ~ 480V Number of Motors: 1 Motor Type: AC Motor Control / Drive Type: Variable Frequency Drive (VFD) Part Status: Active Wattage - Load: 45000 W |
товар відсутній |
||
ATV212WD37N4C | Виробник : Schneider Electric | Motor Drives SPEEDDR 480VAC 50HP,ATV212 Type12 EMC B |
товар відсутній |
||
ATV212WD37N4C | Виробник : SCHNEIDER ELECTRIC |
Category: Three Phase Inverters Description: Vector inverter; 37kW; 3x400VAC; 3x380÷480VAC; 0÷10VDC; 0.5÷200Hz Type of module: vector inverter Max motor power: 37kW Inverter output voltage: 3 x 400V AC The programming method: PC; push-buttons Electrical connection: screw terminals Additional functions: PID regulator Protection: anti-overload OLP; anti-overload OPP; anti-overvoltage OVP; motor blockade; motor earth fault; overheating OTP; undervoltage UVP Mounting: for wall mounting Operating temperature: -10...40°C Output frequency: 0.5...200Hz Number of analog inputs: 2 Number of analog outputs: 1 Current rating: 79A IP rating: IP55 Current output: 0...20mA Manufacturer series: ATV212 Related items: TCSMCNAM3M002P Application: fans; for pump Driver features: integrated EMC filter Voltage output: 0...10V DC Trade name: Altivar Voltage between phases (for three phase system): 3 x 380...480V AC Number of digital inputs: 3 Number of digital outputs: 2 Dimensions: 343x284x880mm Communictions protocol: BACnet/IP; Modbus |
товар відсутній |
