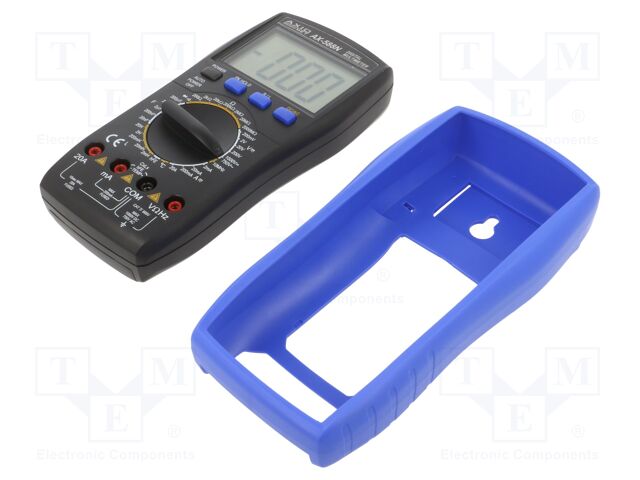

AX-588N AXIOMET
Виробник: AXIOMET
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 3,5 digit; VDC accuracy: ±(0.5%+3digit)
Type of meter: digital multimeter
Measurement: AC current; capacitance; DC current; frequency; resistance; temperature; transistors' gain hFE
Kind of display used: LCD
Display parameters: 3,5 digit
DC voltage measuring range: 0.1...200mV; 2V; 20V; 200V; 1kV
DC voltage measuring accuracy: ±(0.5% + 3 digit)
AC voltage measuring range: 0.1...200mV; 2V; 20V; 200V; 750V
AC voltage measuring accuracy: ±(0.8% + 5 digit)
Bandwidth for AC voltage measurements: 40Hz...100Hz @ ≤750V; 40Hz...400Hz @ ≤200V
DC current measuring range: 1µA...2mA; 20mA; 200mA; 20A
DC current measuring accuracy: ±(0.8% + 3 digit)
AC current measuring range: 1µA...2mA; 20mA; 200mA; 20A
AC current measuring accuracy: ±(1% + 5 digit)
Bandwidth for AC current measurements: 40...200Hz
Resistance measuring range: 100mΩ...200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 20MΩ; 2GΩ
Capacitance measuring range: 10pF...20nF; 2µF; 20µF; 200µF
Capacitance measuring accuracy: ±(2.5%+ 20 digit)
Frequency measuring range: 1...2kHz; 20kHz; 200kHz; 2MHz; 10MHz
Frequency measuring accuracy: ±(0.5%+4 digit)
Temperature measuring range: -40...1000°C
Temperature measurement accuracy: ±(1% + 4 digit)
Resistance measuring accuracy: ±(0.8%+3 digit)
Continuity test: acoustic indication; <70Ω
Weight with battery: 400g

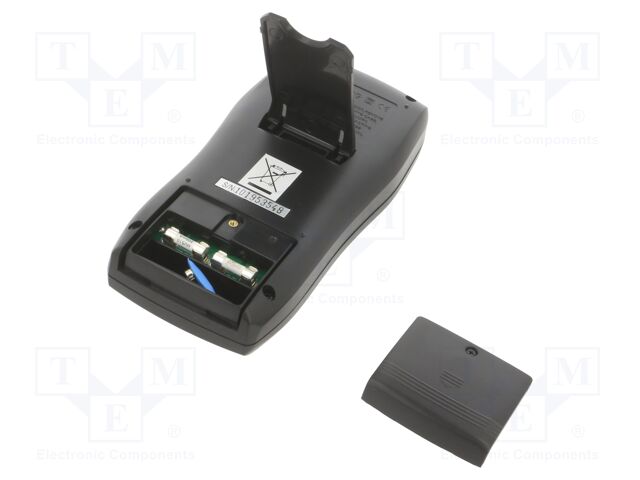

Power supply: battery 6F22 9V x1

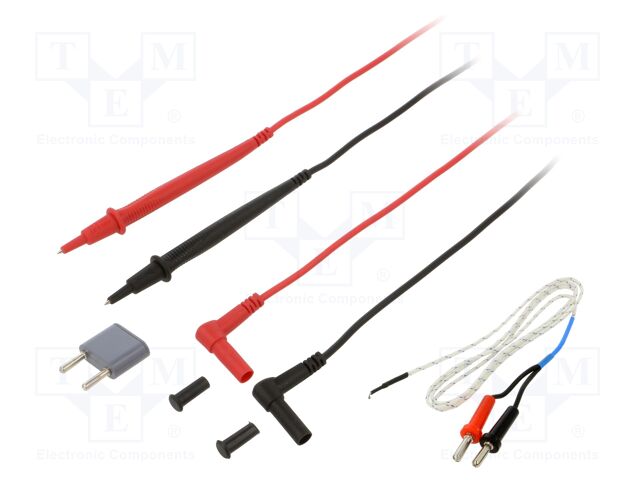

Standard equipment: adapter for capacitance and transistors' gain (hFE) measurement; drop-like K-type probe with banana clips 4mm TP-09; test leads
Conform to the norm: CAT III 1000V; EN 61010
Measuring instrument features: automatic power-off; enhanced range of resistance measurement to 2000MΩ; impact resistant holster; low battery indicator; manual ranging; PEAK HOLD function; universal
Inductance measuring range: 1µH...2mH; 20mH; 200mH; 2H; 20H
Diode test: 1mA @3V
Display height 1: 28mm
Body dimensions: 97x35x189mm
Inductance measuring accuracy: ±(2.5% + 20 digit)
Transistors' gain (hFE) test: 3V
Optional equipment: AX-58P soft cover
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 3,5 digit; VDC accuracy: ±(0.5%+3digit)
Type of meter: digital multimeter
Measurement: AC current; capacitance; DC current; frequency; resistance; temperature; transistors' gain hFE
Kind of display used: LCD
Display parameters: 3,5 digit
DC voltage measuring range: 0.1...200mV; 2V; 20V; 200V; 1kV
DC voltage measuring accuracy: ±(0.5% + 3 digit)
AC voltage measuring range: 0.1...200mV; 2V; 20V; 200V; 750V
AC voltage measuring accuracy: ±(0.8% + 5 digit)
Bandwidth for AC voltage measurements: 40Hz...100Hz @ ≤750V; 40Hz...400Hz @ ≤200V
DC current measuring range: 1µA...2mA; 20mA; 200mA; 20A
DC current measuring accuracy: ±(0.8% + 3 digit)
AC current measuring range: 1µA...2mA; 20mA; 200mA; 20A
AC current measuring accuracy: ±(1% + 5 digit)
Bandwidth for AC current measurements: 40...200Hz
Resistance measuring range: 100mΩ...200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 20MΩ; 2GΩ
Capacitance measuring range: 10pF...20nF; 2µF; 20µF; 200µF
Capacitance measuring accuracy: ±(2.5%+ 20 digit)
Frequency measuring range: 1...2kHz; 20kHz; 200kHz; 2MHz; 10MHz
Frequency measuring accuracy: ±(0.5%+4 digit)
Temperature measuring range: -40...1000°C
Temperature measurement accuracy: ±(1% + 4 digit)
Resistance measuring accuracy: ±(0.8%+3 digit)
Continuity test: acoustic indication; <70Ω
Weight with battery: 400g
Power supply: battery 6F22 9V x1
Standard equipment: adapter for capacitance and transistors' gain (hFE) measurement; drop-like K-type probe with banana clips 4mm TP-09; test leads
Conform to the norm: CAT III 1000V; EN 61010
Measuring instrument features: automatic power-off; enhanced range of resistance measurement to 2000MΩ; impact resistant holster; low battery indicator; manual ranging; PEAK HOLD function; universal
Inductance measuring range: 1µH...2mH; 20mH; 200mH; 2H; 20H
Diode test: 1mA @3V
Display height 1: 28mm
Body dimensions: 97x35x189mm
Inductance measuring accuracy: ±(2.5% + 20 digit)
Transistors' gain (hFE) test: 3V
Optional equipment: AX-58P soft cover
на замовлення 463 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 3820.91 грн |
| 3+ | 3258.11 грн |
Відгуки про товар
Написати відгук
Технічний опис AX-588N AXIOMET
Category: Portable digital multimeters, Description: Digital multimeter; LCD; 3,5 digit; VDC accuracy: ±(0.5%+3digit), Type of meter: digital multimeter, Measurement: AC current; capacitance; DC current; frequency; resistance; temperature; transistors' gain hFE, Kind of display used: LCD, Display parameters: 3,5 digit, DC voltage measuring range: 0.1...200mV; 2V; 20V; 200V; 1kV, DC voltage measuring accuracy: ±(0.5% + 3 digit), AC voltage measuring range: 0.1...200mV; 2V; 20V; 200V; 750V, AC voltage measuring accuracy: ±(0.8% + 5 digit), Bandwidth for AC voltage measurements: 40Hz...100Hz @ ≤750V; 40Hz...400Hz @ ≤200V, DC current measuring range: 1µA...2mA; 20mA; 200mA; 20A, DC current measuring accuracy: ±(0.8% + 3 digit), AC current measuring range: 1µA...2mA; 20mA; 200mA; 20A, AC current measuring accuracy: ±(1% + 5 digit), Bandwidth for AC current measurements: 40...200Hz, Resistance measuring range: 100mΩ...200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 20MΩ; 2GΩ, Capacitance measuring range: 10pF...20nF; 2µF; 20µF; 200µF, Capacitance measuring accuracy: ±(2.5%+ 20 digit), Frequency measuring range: 1...2kHz; 20kHz; 200kHz; 2MHz; 10MHz, Frequency measuring accuracy: ±(0.5%+4 digit), Temperature measuring range: -40...1000°C, Temperature measurement accuracy: ±(1% + 4 digit), Resistance measuring accuracy: ±(0.8%+3 digit), Continuity test: acoustic indication; .
