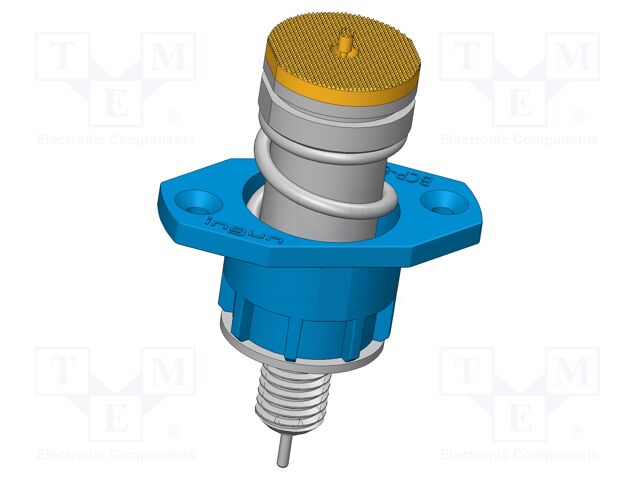

BCP-696 360 2200 A 110004-54 INGUN
Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 5mm; 200A; Ø: 22mm
Blade tip shape: serrated
Contact material: CuBe
Type of test accessories: test needle
Maksimum spring compression: 10mm
Operational spring compression: 5mm
Tip diameter: 22mm
Test accessories features: for testing battery cells
Length: 71mm
Current rating: 200A
Operating temperature: -40...80°C
Max. contact resistance:: 0.5mΩ
Contact plating: gold-plated
Spring compression force: 110N
Mounting: screw
Category: Contact Probes
Description: Test needle; Operational spring compression: 5mm; 200A; Ø: 22mm
Blade tip shape: serrated
Contact material: CuBe
Type of test accessories: test needle
Maksimum spring compression: 10mm
Operational spring compression: 5mm
Tip diameter: 22mm
Test accessories features: for testing battery cells
Length: 71mm
Current rating: 200A
Operating temperature: -40...80°C
Max. contact resistance:: 0.5mΩ
Contact plating: gold-plated
Spring compression force: 110N
Mounting: screw
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис BCP-696 360 2200 A 110004-54 INGUN
Category: Contact Probes, Description: Test needle; Operational spring compression: 5mm; 200A; Ø: 22mm, Blade tip shape: serrated, Contact material: CuBe, Type of test accessories: test needle, Maksimum spring compression: 10mm, Operational spring compression: 5mm, Tip diameter: 22mm, Test accessories features: for testing battery cells, Length: 71mm, Current rating: 200A, Operating temperature: -40...80°C, Max. contact resistance:: 0.5mΩ, Contact plating: gold-plated, Spring compression force: 110N, Mounting: screw.
