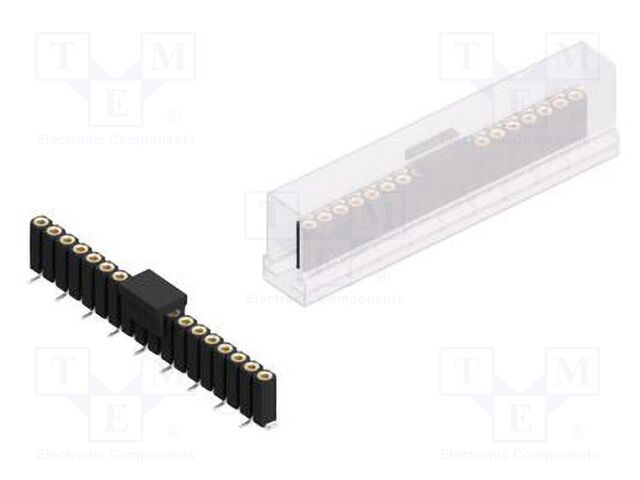

BL15SMD04318BSM FISCHER ELEKTRONIK

Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 18; BL 15 SMD; 3A; 150V, Type of connector: pin strips, Connector: socket, Kind of connector: female, Number of pins: 18, Manufacturer series: BL 15 SMD, Current rating: 3A, Rated voltage: 150V, Spatial orientation: straight, Electrical mounting: SMT, Contacts pitch: 2.54mm, Connector pinout layout: 1x18, Contact plating: gold-plated, Connector variant: pick and place; precision; turned contacts, Flammability rating: UL94V-0, Plating thickness: 0.75µm, Contact material: beryllium copper, Overall length: 8.6mm, Operating temperature: -40...163°C, Kind of package: tube, Lead length: 2.1mm, кількість в упаковці: 10 шт.
