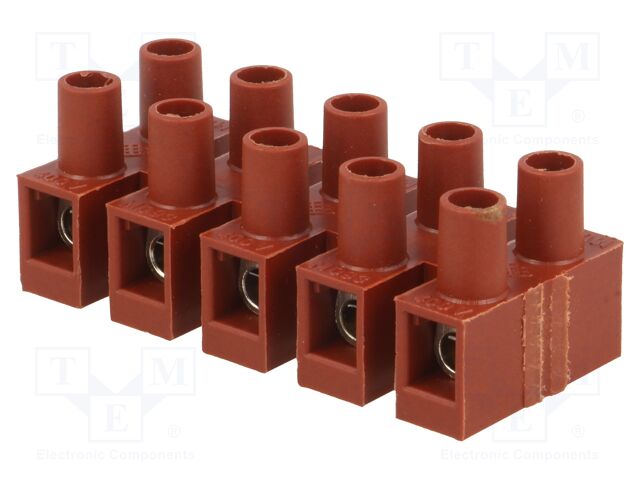

BM 93FS5 BM GROUP
Виробник: BM GROUPCategory: Terminal blocks
Description: Connector: terminal block; 400V; with wire protector; brown; 4mm2
Connector variant: with wire protector
Operating temperature: max. 150°C
Width: 20.5mm
Flammability rating: UL94V-0
Body material: polyamide; polyamide 66
Height: 17.5mm
Length: 46.6mm
Contact material: brass
Conform to the norm: CE; CSA; EN; UL
Wire cross-section: 4mm2
Wire size: 18AWG...12AWG
Mounting hole diameter: 3.3mm
Connectors features: may be easily broken into smaller fragments
Electrical mounting: screw terminal
Mechanical mounting: for cable; for panel mounting; mounting holes
Number of ways: 5
Number of terminals: 10
Kind of material: fiber glass reinforced
Colour: brown
Type of connector: terminal block
Contact plating: nickel plated
Rated voltage: 400V
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис BM 93FS5 BM GROUP
Category: Terminal blocks, Description: Connector: terminal block; 400V; with wire protector; brown; 4mm2, Connector variant: with wire protector, Operating temperature: max. 150°C, Width: 20.5mm, Flammability rating: UL94V-0, Body material: polyamide; polyamide 66, Height: 17.5mm, Length: 46.6mm, Contact material: brass, Conform to the norm: CE; CSA; EN; UL, Wire cross-section: 4mm2, Wire size: 18AWG...12AWG, Mounting hole diameter: 3.3mm, Connectors features: may be easily broken into smaller fragments, Electrical mounting: screw terminal, Mechanical mounting: for cable; for panel mounting; mounting holes, Number of ways: 5, Number of terminals: 10, Kind of material: fiber glass reinforced, Colour: brown, Type of connector: terminal block, Contact plating: nickel plated, Rated voltage: 400V, кількість в упаковці: 1 шт.
