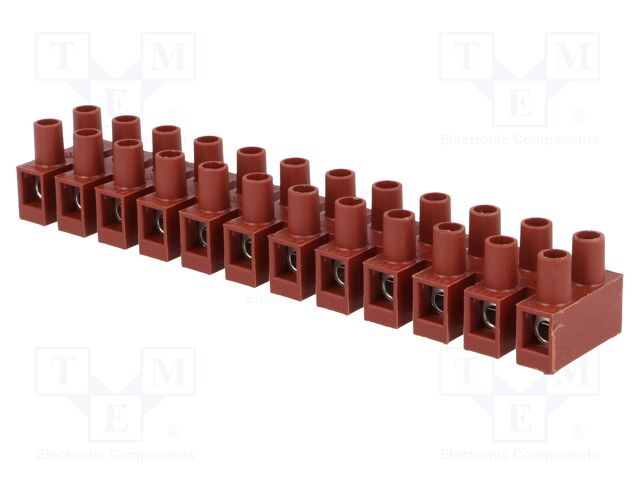

BM 93GFCS

BM 93GFCS BM GROUP


pVersion=0046&contRep=ZT&docId=005056AB752F1EE78AFE252E68E70745&compId=BM93CS1.pdf?ci_sign=5ebd537a6df490deec87df678bac7fb6205f981f Виробник: BM GROUP
Category: Terminal blocks
Description: Connector: terminal block; 400V; with wire protector; brown; 4mm2
Operating temperature: max. 150°C
Contact material: brass
Electrical mounting: screw terminal
Mechanical mounting: for cable; for panel mounting; mounting holes
Number of ways: 12
Number of terminals: 24
Kind of material: fiber glass reinforced
Colour: brown
Type of connector: terminal block
Contact plating: nickel plated
Rated voltage: 400V
Width: 20.5mm
Flammability rating: UL94V-0
Body material: polyamide; polyamide 66
Height: 17.5mm
Length: 117mm
Connector variant: with wire protector
Conform to the norm: CE; CSA; EN; UL
Wire cross-section: 4mm2
Wire size: 18AWG...12AWG
Mounting hole diameter: 3.3mm
Connectors features: may be easily broken into smaller fragments
на замовлення 120 шт:

термін постачання 21-30 дні (днів)
Кількість Ціна
3+172.56 грн
9+116.39 грн
23+110.01 грн
Мінімальне замовлення: 3
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис BM 93GFCS BM GROUP

Category: Terminal blocks, Description: Connector: terminal block; 400V; with wire protector; brown; 4mm2, Operating temperature: max. 150°C, Contact material: brass, Electrical mounting: screw terminal, Mechanical mounting: for cable; for panel mounting; mounting holes, Number of ways: 12, Number of terminals: 24, Kind of material: fiber glass reinforced, Colour: brown, Type of connector: terminal block, Contact plating: nickel plated, Rated voltage: 400V, Width: 20.5mm, Flammability rating: UL94V-0, Body material: polyamide; polyamide 66, Height: 17.5mm, Length: 117mm, Connector variant: with wire protector, Conform to the norm: CE; CSA; EN; UL, Wire cross-section: 4mm2, Wire size: 18AWG...12AWG, Mounting hole diameter: 3.3mm, Connectors features: may be easily broken into smaller fragments, кількість в упаковці: 1 шт.

Інші пропозиції BM 93GFCS за ціною від 132.02 грн до 207.08 грн

Фото Назва Виробник Інформація Доступність
Ціна
BM 93GFCS BM 93GFCS Виробник : BM GROUP pVersion=0046&contRep=ZT&docId=005056AB752F1EE78AFE252E68E70745&compId=BM93CS1.pdf?ci_sign=5ebd537a6df490deec87df678bac7fb6205f981f Category: Terminal blocks
Description: Connector: terminal block; 400V; with wire protector; brown; 4mm2
Operating temperature: max. 150°C
Contact material: brass
Electrical mounting: screw terminal
Mechanical mounting: for cable; for panel mounting; mounting holes
Number of ways: 12
Number of terminals: 24
Kind of material: fiber glass reinforced
Colour: brown
Type of connector: terminal block
Contact plating: nickel plated
Rated voltage: 400V
Width: 20.5mm
Flammability rating: UL94V-0
Body material: polyamide; polyamide 66
Height: 17.5mm
Length: 117mm
Connector variant: with wire protector
Conform to the norm: CE; CSA; EN; UL
Wire cross-section: 4mm2
Wire size: 18AWG...12AWG
Mounting hole diameter: 3.3mm
Connectors features: may be easily broken into smaller fragments
кількість в упаковці: 1 шт
на замовлення 120 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
2+207.08 грн
9+145.04 грн
23+132.02 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
