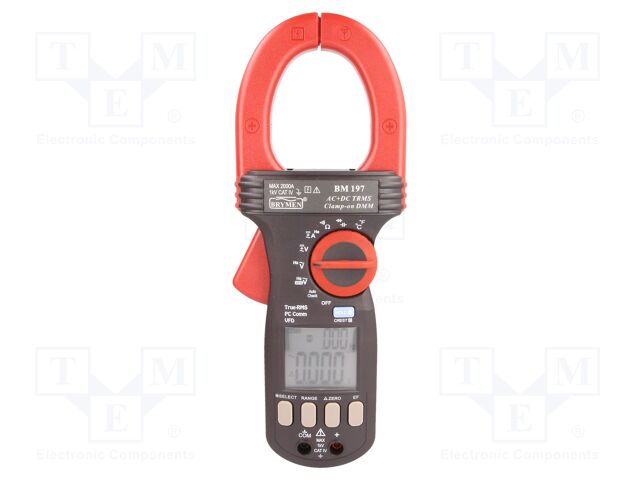

BM197 BRYMEN
Виробник: BRYMENCategory: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; Øcable: 55mm; LCD
Type of meter: multifunction

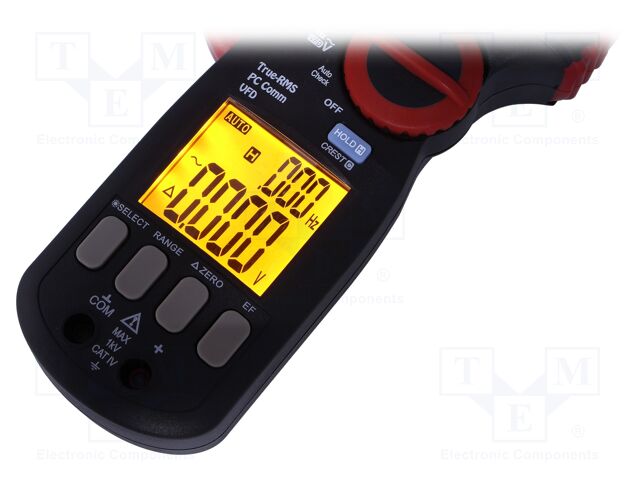

Kind of display used: LCD
Display parameters: 3,5 digit (1999); (6000)
Illumination: yes
True effective value measurement: True RMS
DC voltage measuring range: 6V; 60V; 600V; 1kV
AC voltage measuring range: 6V; 60V; 600V; 1kV
DC current measuring range: 200A; 2kA
AC current measuring range: 200A; 2kA
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 40MΩ
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 2mF
Frequency measuring range: 10...1999Hz
Diode test: 0.56mA @1.8V
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Interface: USB
Dimensions: 264x43x97mm
Measuring instrument features: auto and manual ranging; automatic power-off; contactless voltage detector; HOLD function; REL function; simultaneously measures voltage and frequency
Standard equipment: drop-like K-type probe; test leads
Weight with battery: 608g
Continuity test: acoustic indication; <10Ω
Sampling: 5x/s
Max. diameter of measured cable: 55mm
Temperature measuring range: -50...1000°C
Kind of meter: digital; pincers type

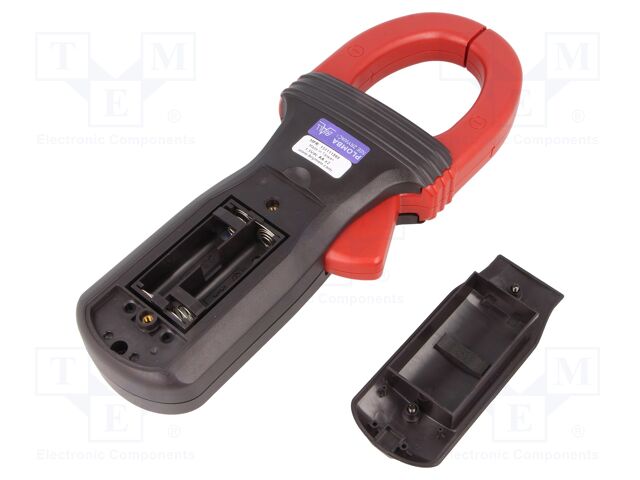

Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Frequency measuring accuracy: ±(0.1%+4 digit)
AC current measuring accuracy: ±(2.5% + 5 digit)@(0A...500A); ±(3% + 5 digit)@(500A...2kA)
DC voltage measuring accuracy: ±(0.5% + 5 digit)
DC current measuring accuracy: ±(2% + 5 digit)
AC voltage measuring accuracy: ±(1.2% + 5 digit)
Temperature measurement accuracy: ±(0.3% + 4 digit)
Power supply: battery LR6 AA 1,5V x2
Conform to the norm: CAT IV 1000V; EN 61010
на замовлення 4 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 14170.60 грн |
Відгуки про товар
Написати відгук
Технічний опис BM197 BRYMEN
Category: Meters and AC/DC Clamp Probes, Description: Meter: multifunction; digital,pincers type; Øcable: 55mm; LCD, Type of meter: multifunction, Kind of display used: LCD, Display parameters: 3,5 digit (1999); (6000), Illumination: yes, True effective value measurement: True RMS, DC voltage measuring range: 6V; 60V; 600V; 1kV, AC voltage measuring range: 6V; 60V; 600V; 1kV, DC current measuring range: 200A; 2kA, AC current measuring range: 200A; 2kA, Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 40MΩ, Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 2mF, Frequency measuring range: 10...1999Hz, Diode test: 0.56mA @1.8V, Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature, Interface: USB, Dimensions: 264x43x97mm, Measuring instrument features: auto and manual ranging; automatic power-off; contactless voltage detector; HOLD function; REL function; simultaneously measures voltage and frequency, Standard equipment: drop-like K-type probe; test leads, Weight with battery: 608g, Continuity test: acoustic indication; .
