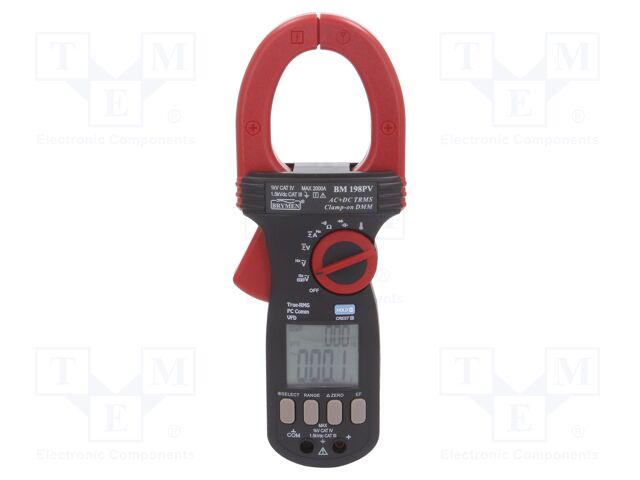

BM198PV BRYMEN

Category: PV and EVSE Testers and Meters, Description: Meter: multifunction; VAC accuracy: ±(1.2%+5digit); 10÷1999Hz, Conform to the norm: CAT IV 1000V; EN 61010, Kind of meter: digital; pincers type, Measuring instruments application: for solar panels; photovoltaics, Kind of display used: LCD, Type of meter: multifunction, True effective value measurement: True RMS, Interface: USB, Temperature measuring range: -50...1000°C, AC current measuring range: 200A; 2kA, DC current measuring range: 200A; 2kA, Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 2mF, DC voltage measuring range: 6V; 60V; 600V; 1kV; 1.5kV, AC voltage measuring range: 6V; 60V; 600V; 1kV, Max. diameter of measured cable: 55mm, Frequency measuring accuracy: ±(0.1%+4 digit), Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 40MΩ, Dimensions: 264x43x97mm, Temperature measurement accuracy: ±(0.3% + 4 digit), DC voltage measuring accuracy: ±(0.5% + 5 digit), AC voltage measuring accuracy: ±(1.2% + 5 digit), AC current measuring accuracy: ±(2.5% + 50 digit)@500A; ±(3% + 5 digit)@(500A...2kA), DC current measuring accuracy: ±(2% + 5 digit), Frequency measuring range: 10...1999Hz, Weight with battery: 608g, Display parameters: (6000), Sampling: 5x/s, Continuity test: acoustic indication; .
