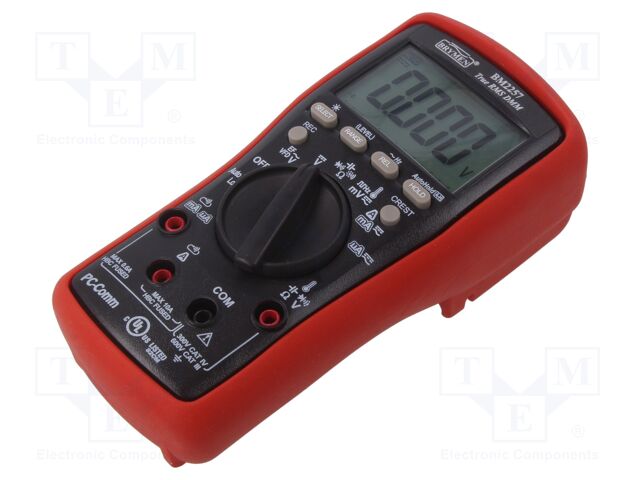

BM2257 BRYMEN

Category: Portable digital multimeters, Description: Digital multimeter; LCD; (6000); Bargraph: 60segm.40x/s; 5x/s, Type of meter: digital multimeter, Kind of display used: LCD, Display parameters: (6000), Illumination: yes, True effective value measurement: True RMS AC, DC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V, AC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V, DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A, AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A, Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ, Capacitance measuring range: 20nF; 200nF; 2µF; 20µF; 200µF; 2mF; 10mF, Frequency measuring range: 10Hz...200kHz, Diode test: 0.3mA @3V, Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature, Measuring instrument features: auto and manual ranging; Autocheck function - automatic selection LoZ DCV, LoZ ACV, i Ω; automatic power-off; contactless voltage detector; CREST: logging of extreme values MAX, MIN and MAX-MIN of voltage and current impulses > 0,8ms; HOLD function; indicates incorrect connection of test leads; logging of MAX, MIN; MIN/MAX/REL function, Standard equipment: K-type temperature probe; test leads; user's manual, Related items: BMH-01; KITBRUA-20X, Continuity test: acoustic indication; optical indication; 30Ω...480Ω, Sampling: 5x/s, Pollution degree: 2, Temperature measuring range: -40...99.9°C; 100...1000°C, Bargraph: 60 segm. 40x/s, Dimensions (W x H x D): 80x161x50mm, Battery/ rechargeable battery: battery LR03 AAA 1,5V x2, Frequency measuring accuracy: ±(0.03%+3 digit), Capacitance measuring accuracy: ±(1.5%+ 2 digit); ±(1.5%+8 digit) @ 20nF...200nF; ±(4.5%+10 digit) @ 10mF, AC current measuring accuracy: ±(1% + 5 digit), DC voltage measuring accuracy: ±(0.2% + 3 digit) @600V; ±(0.3% + 4 digit) @60mV; ±(0.3% + 4 digit) @600mV; ±(0.3% + 4 digit) @6V; ±(0.4% + 3 digit) @60V, DC current measuring accuracy: ±(0.5% + 5 digit); ±(1% + 5 digit) @6A; ±(1% + 5 digit) @10A, AC voltage measuring accuracy: ±(0.7% + 3 digit); ±(1% + 3 digit), Resistance measuring accuracy: ±(0.5%+4 digit); ±(0.7%+4 digit)@(6MΩ); ±(2%+4 digit)@(60MΩ), Temperature measurement accuracy: ±(0.3% + 3°C) @(100°C...1000°C); ±(1% + 1°C) @(-40°C...99.9°C), Power supply: battery LR03 AAA 1,5V x2, Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010, кількість в упаковці: 1 шт.
