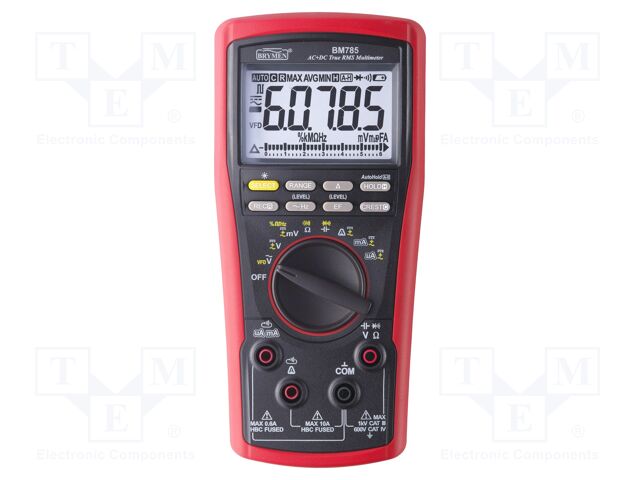

BM785 BRYMEN

Category: Portable digital multimeters, Description: Digital multimeter; LCD; 4-5/6 digits (60000); 5x/s; True RMS, Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010, Standard equipment: test leads, Power supply: battery AAA 1,5V x3, Manufacturer series: BM780, Type of meter: digital multimeter, Kind of display used: LCD, True effective value measurement: True RMS, Bargraph: yes, AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A, DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A, DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV, AC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV, Capacitance measuring range: 10nF; 100nF; 1µF; 10µF; 1mF; 10mF, Diode test: 0.35mA @3V, Frequency measuring range: 5...1MHz, Frequency measuring accuracy: ±(0.002%+4 digit), Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ, DC voltage measuring accuracy: ±(0.03% + 2 digit), Resistance measuring accuracy: ±(0.085%+4 digit), DC current measuring accuracy: ±(0.075% + 20 digit), Dimensions (W x H x D): 193x89x51mm, AC voltage measuring accuracy: ±(0.5% + 30 digit), AC current measuring accuracy: ±(0.9% + 20 digit), Capacitance measuring accuracy: ±(1%+ 2 digit), Pollution degree: 2, Bandwidth for AC current measurements: 40Hz...3kHz, Bandwidth for AC voltage measurements: 50...7000Hz, Sampling: 5x/s, Display parameters: 4-5/6 digits (60000), Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; duty cycle; frequency; resistance, Continuity test: acoustic indication; 100Ω...420Ω, Measuring instrument features: automatic power-off; autoranging; contactless voltage detector; HOLD function; indicates incorrect connection of test leads; measures digital logic level frequencies and duty cycles; MIN/MAX/AVG function; REL function, кількість в упаковці: 1 шт.
