Продукція > IGUS > CF895.15.04
CF895.15.04

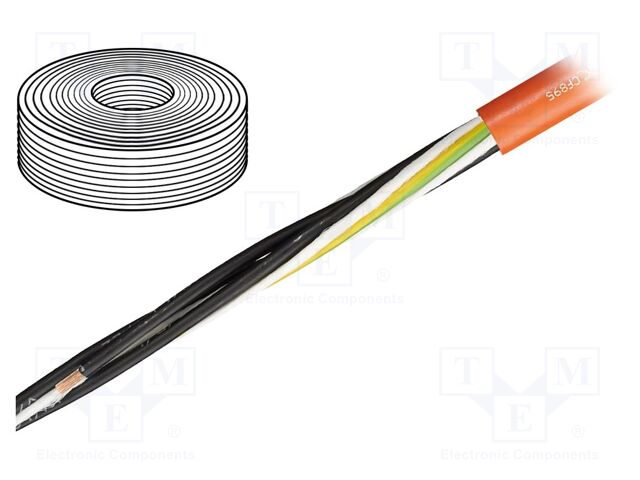

CF895.15.04 IGUS

pVersion=0046&contRep=ZT&docId=005056AB752F1ED7BDF2E2DD7C2DEA18&compId=CF895EN.pdf?ci_sign=fcae89a9fc2302d7350bb0b0c129a0f5ce9295c6 Виробник: IGUS
Category: Cables for Power Chains - Unshielded
Description: Wire: motor; chainflex® CF895; 4G1.5mm2; PUR; orange; stranded; Cu
Type of wire: motor
Kind of wire: chainflex® CF895
Cable structure: 4G1.5mm2
Insulation colour: orange
Core structure: stranded
Kind of core: Cu
Operating temperature: -20...80°C
Shield structure: unshielded
Wire insulation material: PUR
Cable external diameter: 9mm
Number of cores: 4
Rated voltage: 600V; 1kV
Core section: 1.5mm2
Core marking: black, numbered + ground wire
CPR standard: no classification
Earth core: yellow-green
Resistance to: most of oils; temperature
Cable application: indoor; industrial applications; motors power 0,6/1 kV; outdoor; power chain
Kind of material: no flame propagation
Conform to the norm: UL 10492; UL 20940
Cable features: self-supporting
Information: The UL Label and Mark on full factory packaging only
на замовлення 40 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
5+332.27 грн
10+291.52 грн
Мінімальне замовлення: 5
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис CF895.15.04 IGUS

Category: Cables for Power Chains - Unshielded, Description: Wire: motor; chainflex® CF895; 4G1.5mm2; PUR; orange; stranded; Cu, Type of wire: motor, Kind of wire: chainflex® CF895, Cable structure: 4G1.5mm2, Insulation colour: orange, Core structure: stranded, Kind of core: Cu, Operating temperature: -20...80°C, Shield structure: unshielded, Wire insulation material: PUR, Cable external diameter: 9mm, Number of cores: 4, Rated voltage: 600V; 1kV, Core section: 1.5mm2, Core marking: black, numbered + ground wire, CPR standard: no classification, Earth core: yellow-green, Resistance to: most of oils; temperature, Cable application: indoor; industrial applications; motors power 0,6/1 kV; outdoor; power chain, Kind of material: no flame propagation, Conform to the norm: UL 10492; UL 20940, Cable features: self-supporting, Information: The UL Label and Mark on full factory packaging only, кількість в упаковці: 5 шт.

Інші пропозиції CF895.15.04 за ціною від 335.91 грн до 398.72 грн

Фото Назва Виробник Інформація Доступність
Ціна
CF895.15.04 CF895.15.04 Виробник : IGUS pVersion=0046&contRep=ZT&docId=005056AB752F1ED7BDF2E2DD7C2DEA18&compId=CF895EN.pdf?ci_sign=fcae89a9fc2302d7350bb0b0c129a0f5ce9295c6 Category: Cables for Power Chains - Unshielded
Description: Wire: motor; chainflex® CF895; 4G1.5mm2; PUR; orange; stranded; Cu
Type of wire: motor
Kind of wire: chainflex® CF895
Cable structure: 4G1.5mm2
Insulation colour: orange
Core structure: stranded
Kind of core: Cu
Operating temperature: -20...80°C
Shield structure: unshielded
Wire insulation material: PUR
Cable external diameter: 9mm
Number of cores: 4
Rated voltage: 600V; 1kV
Core section: 1.5mm2
Core marking: black, numbered + ground wire
CPR standard: no classification
Earth core: yellow-green
Resistance to: most of oils; temperature
Cable application: indoor; industrial applications; motors power 0,6/1 kV; outdoor; power chain
Kind of material: no flame propagation
Conform to the norm: UL 10492; UL 20940
Cable features: self-supporting
Information: The UL Label and Mark on full factory packaging only
кількість в упаковці: 5 шт
на замовлення 40 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
5+398.72 грн
10+363.28 грн
50+335.91 грн
Мінімальне замовлення: 5
В кошику  од. на суму  грн.
CF895.15.04 CF895.15.04 Виробник : igus EU_Data_sheet_chainflex_CF895-3315993.pdf Multi-Conductor Cables chainflex iguPUR motor cable 1.5mm2 (16awg) 4 conductor, 1000V
