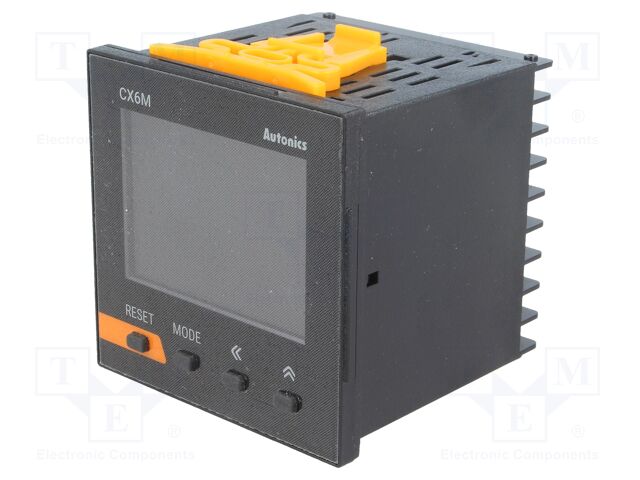

CX6M-2P2F

CX6M-2P2F AUTONICS

pVersion=0046&contRep=ZT&docId=005056AB82531ED9A69ABF8035F31820&compId=CX-series.pdf?ci_sign=9864e417feea62606952bf055ee130b3a414b49b pVersion=0046&contRep=ZT&docId=005056AB82531ED9A69AC22B82FC9820&compId=CX-manual.pdf?ci_sign=2fa7c93b54d182bf6387b8188ccd94ed8373c6a0 pVersion=0046&contRep=ZT&docId=005056AB82531ED9A69AC4D28246F820&compId=CX-manual2.pdf?ci_sign=1716188e31f0bb6cc4ae893339dde532a2b8c45d Виробник: AUTONICS
Category: Impulse Counters
Description: Counter: electronical; LCD; time/pulses; SPST; IN 1: voltage
Type of counter: electronical
Kind of display used: LCD
Type of counted signal: time/pulses
Counting range: 0,001s...99999,9h / 999999
Resetting method: electrical; locking possibility; manual
Kind of output 1: SPST
Output 1 electrical parameters: 30V DC / 3A; 250V AC / 3A
Kind of output 2: SPST
Output 2 electrical parameters: 30V DC / 3A; 250V AC / 3A
Kind of input 1: voltage
Kind of input 2: voltage
Operating temperature: -10...55°C
Body dimensions: 72x72x70.5mm
Display height 1: 15.2mm
Display 2 height: 12.3mm
Supply voltage: 24V AC; 24...48V DC
Power supply: external
Mounting hole diameter: 68x68mm
Electrical connection: screw terminals
Mounting: on panel
Kind of counter: progressive/reversing
The additional control inputs: RESET
Counter operation modes: delayed switching off; delayed switching on; ON and OFF delay; pulse after a specified time
Number of operation modes: 15
