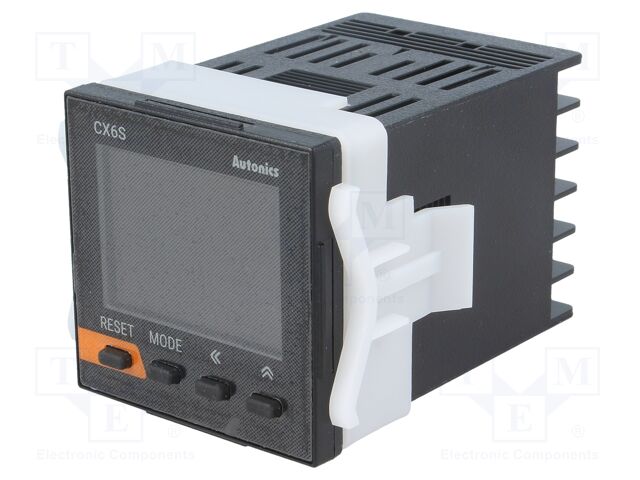

CX6S-2P2F AUTONICS
Виробник: AUTONICSCategory: Impulse Counters
Description: Counter: electronical; LCD; time/pulses; SPST; IN 1: voltage
Operating temperature: -10...55°C
Mounting: on panel
Kind of input 2: voltage
Kind of input 1: voltage
Kind of counter: progressive/reversing
The additional control inputs: RESET
Electrical connection: screw terminals
Kind of output 1: SPST
Kind of output 2: SPST
Type of counted signal: time/pulses
Body dimensions: 48x48x70.5mm
Display 2 height: 8.1mm
Display height 1: 10.1mm
Mounting hole diameter: 45x45mm
Supply voltage: 24V AC; 24...48V DC
Counting range: 0,001s...99999,9h / 999999
Output 2 electrical parameters: 30V DC / 3A; 250V AC / 3A
Output 1 electrical parameters: 30V DC / 3A; 250V AC / 3A
Number of operation modes: 15
Counter operation modes: delayed switching off; delayed switching on; ON and OFF delay; pulse after a specified time
Resetting method: electrical; locking possibility; manual
Type of counter: electronical
Power supply: external
Kind of display used: LCD
на замовлення 2 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 5581.10 грн |
Відгуки про товар
Написати відгук
Технічний опис CX6S-2P2F AUTONICS
Category: Impulse Counters, Description: Counter: electronical; LCD; time/pulses; SPST; IN 1: voltage, Operating temperature: -10...55°C, Mounting: on panel, Kind of input 2: voltage, Kind of input 1: voltage, Kind of counter: progressive/reversing, The additional control inputs: RESET, Electrical connection: screw terminals, Kind of output 1: SPST, Kind of output 2: SPST, Type of counted signal: time/pulses, Body dimensions: 48x48x70.5mm, Display 2 height: 8.1mm, Display height 1: 10.1mm, Mounting hole diameter: 45x45mm, Supply voltage: 24V AC; 24...48V DC, Counting range: 0,001s...99999,9h / 999999, Output 2 electrical parameters: 30V DC / 3A; 250V AC / 3A, Output 1 electrical parameters: 30V DC / 3A; 250V AC / 3A, Number of operation modes: 15, Counter operation modes: delayed switching off; delayed switching on; ON and OFF delay; pulse after a specified time, Resetting method: electrical; locking possibility; manual, Type of counter: electronical, Power supply: external, Kind of display used: LCD, кількість в упаковці: 1 шт.
