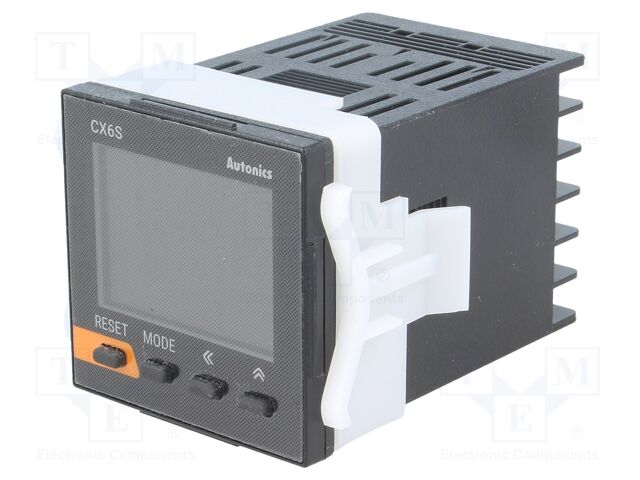

CX6S-2P4 AUTONICS

Category: Impulse Counters, Description: Counter: electronical; LCD; time/pulses; SPST; IN 1: NPN,PNP, Operating temperature: -10...55°C, Mounting: on panel, The additional control inputs: RESET; TOTAL RESET, Electrical connection: screw terminals, Counter operation modes: delayed switching off; delayed switching on; ON and OFF delay; pulse after a specified time, Display height 1: 10.1mm, Number of operation modes: 15, Kind of display used: LCD, Counting range: 0,001s...99999,9h / 999999, Output 2 electrical parameters: 30V DC / 3A; 250V AC / 3A, Display 2 height: 8.1mm, Body dimensions: 48x48x70.5mm, Kind of input 1: NPN; PNP, Kind of counter: progressive/reversing, Type of counter: electronical, Type of counted signal: time/pulses, Kind of input 2: NPN; PNP, Output 1 electrical parameters: 30V DC / 3A; 250V AC / 3A, Kind of output 2: SPST, Supply voltage: 100...240V AC, Kind of output 1: SPST, Mounting hole dimensions: 45x45mm, Resetting method: electrical; locking possibility; manual, Power supply: external.
