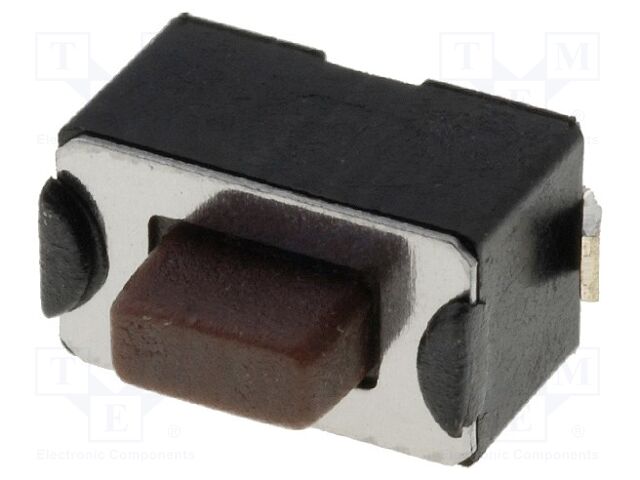

DTSM-32N-V-B DIPTRONICS
Виробник: DIPTRONICSCategory: Microswitches TACT
Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; none; 1.6N
Type of switch: microswitch TACT
Number of positions: 2
Stable positions number: 1
DC contacts rating @R: 50mA / 12V DC
Mounting: SMT
Illumination: none
Body dimensions: 3.5x6mm
Button height: 5mm
Switching method: OFF-(ON)
Operating temperature: -25...70°C
Leads: for PCB
Max. contact resistance:: 100mΩ
Body material: polyamide
Soldering temperature: 260°C / 5 s
Contact material: phosphor bronze
Contacts configuration: SPST-NO
Terminal pitch: 1.6x7.4mm
Operating Force: 1.6N
Key stroke: 0.35mm
Button shape: rectangular
Contact plating: silver plated
Electrical life: 500000 cycles
Flammability rating: UL94V-0
на замовлення 5801 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 23+ | 18.70 грн |
| 28+ | 13.95 грн |
| 31+ | 12.63 грн |
| 100+ | 11.24 грн |
| 126+ | 7.21 грн |
| 346+ | 6.82 грн |
Відгуки про товар
Написати відгук
Технічний опис DTSM-32N-V-B DIPTRONICS
Category: Microswitches TACT, Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; none; 1.6N, Type of switch: microswitch TACT, Number of positions: 2, Stable positions number: 1, DC contacts rating @R: 50mA / 12V DC, Mounting: SMT, Illumination: none, Body dimensions: 3.5x6mm, Button height: 5mm, Switching method: OFF-(ON), Operating temperature: -25...70°C, Leads: for PCB, Max. contact resistance:: 100mΩ, Body material: polyamide, Soldering temperature: 260°C / 5 s, Contact material: phosphor bronze, Contacts configuration: SPST-NO, Terminal pitch: 1.6x7.4mm, Operating Force: 1.6N, Key stroke: 0.35mm, Button shape: rectangular, Contact plating: silver plated, Electrical life: 500000 cycles, Flammability rating: UL94V-0, кількість в упаковці: 1 шт.
Інші пропозиції DTSM-32N-V-B за ціною від 8.19 грн до 22.44 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DTSM-32N-V-B | Виробник : DIPTRONICS |
Category: Microswitches TACT Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; none; 1.6N Type of switch: microswitch TACT Number of positions: 2 Stable positions number: 1 DC contacts rating @R: 50mA / 12V DC Mounting: SMT Illumination: none Body dimensions: 3.5x6mm Button height: 5mm Switching method: OFF-(ON) Operating temperature: -25...70°C Leads: for PCB Max. contact resistance:: 100mΩ Body material: polyamide Soldering temperature: 260°C / 5 s Contact material: phosphor bronze Contacts configuration: SPST-NO Terminal pitch: 1.6x7.4mm Operating Force: 1.6N Key stroke: 0.35mm Button shape: rectangular Contact plating: silver plated Electrical life: 500000 cycles Flammability rating: UL94V-0 кількість в упаковці: 1 шт |
на замовлення 5801 шт: термін постачання 14-21 дні (днів) |
|
