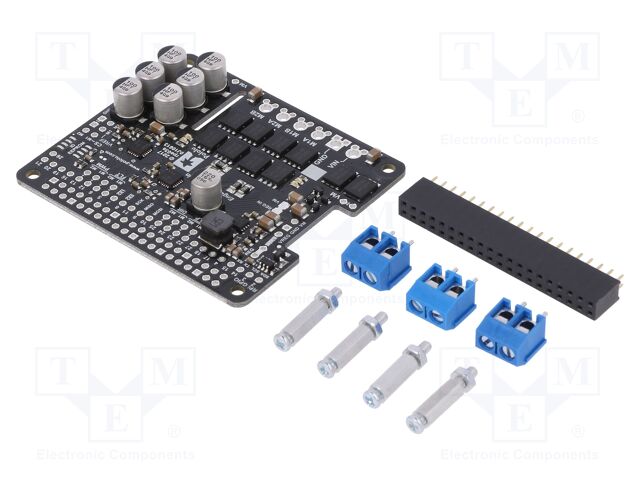

DUAL G2 HP MOTOR DRIVER 24V18 RPI POLOLU
Виробник: POLOLU
Category: Motor Control Modules
Description: DC-motor driver; DUAL G2; 100kHz; analog,PWM,TTL; 6.5÷36V; Ch: 2
Kind of module: shield
Kit contents: connectors; module
Interface: analog; PWM; TTL
Number of channels: 2
Maximum current: 50A
Application: Raspberry Pi
Board dimensions: 65x56mm
Type of module: DC-motor driver
Additional functions: current sensor; integrated switching step-down regulator 5V (2,5A); LED indicators; short-circuit protection; under voltage protection
Manufacturer series: DUAL G2
Continuous output current per channel: 18A
Motor input voltage: 6.5...36V
Information: product is not a working device, but only component
Max. frequency: 100kHz
Category: Motor Control Modules
Description: DC-motor driver; DUAL G2; 100kHz; analog,PWM,TTL; 6.5÷36V; Ch: 2
Kind of module: shield
Kit contents: connectors; module
Interface: analog; PWM; TTL
Number of channels: 2
Maximum current: 50A
Application: Raspberry Pi
Board dimensions: 65x56mm
Type of module: DC-motor driver
Additional functions: current sensor; integrated switching step-down regulator 5V (2,5A); LED indicators; short-circuit protection; under voltage protection
Manufacturer series: DUAL G2
Continuous output current per channel: 18A
Motor input voltage: 6.5...36V
Information: product is not a working device, but only component
Max. frequency: 100kHz
на замовлення 1 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 11884.27 грн |
Відгуки про товар
Написати відгук
Технічний опис DUAL G2 HP MOTOR DRIVER 24V18 RPI POLOLU
Category: Motor Control Modules, Description: DC-motor driver; DUAL G2; 100kHz; analog,PWM,TTL; 6.5÷36V; Ch: 2, Kind of module: shield, Kit contents: connectors; module, Interface: analog; PWM; TTL, Number of channels: 2, Maximum current: 50A, Application: Raspberry Pi, Board dimensions: 65x56mm, Type of module: DC-motor driver, Additional functions: current sensor; integrated switching step-down regulator 5V (2,5A); LED indicators; short-circuit protection; under voltage protection, Manufacturer series: DUAL G2, Continuous output current per channel: 18A, Motor input voltage: 6.5...36V, Information: product is not a working device, but only component, Max. frequency: 100kHz, кількість в упаковці: 1 шт.
