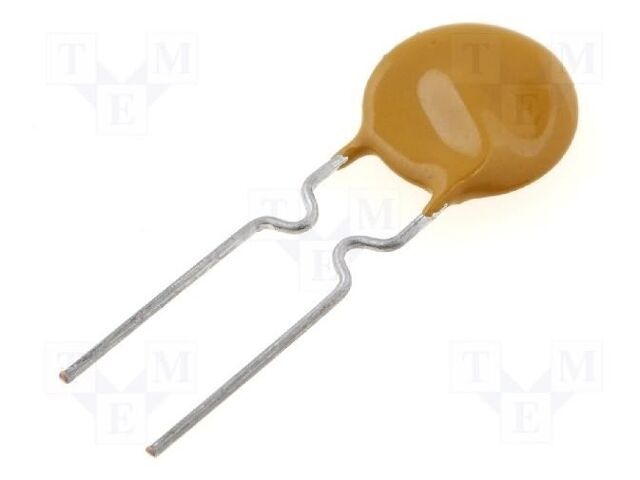

ERF-RA05060Z ECE
Виробник: ECE
Category: THT Polymer Fuses
Description: Fuse: PTC polymer; 500mA; THT; 5.1mm; Ø0.51x7.6mm
Type of fuse: PTC polymer
Current rating: 0.5A
Switched current: 1A
Max. voltage: 60V DC
Power: 770mW
Min. resistance: 500mΩ
Max resistance: 1.17Ω
Operating temperature: -40...85°C
E dimension: 3.1mm
Leads dimensions: Ø0.51x7.6mm
C dimension: 5.1mm
D dimension: 7.6mm
F dimension: 1.1mm
B dimension: 13.7mm
A dimension: 7.9mm
Terminal pitch: 5.1mm
Max surge current: 40A
Mounting: THT
| Кількість | Ціна |
|---|---|
| 29+ | 16.08 грн |
| 33+ | 13.24 грн |
| 100+ | 11.62 грн |
| 500+ | 10.44 грн |
| 1000+ | 9.93 грн |
Відгуки про товар
Написати відгук
Технічний опис ERF-RA05060Z ECE
Category: THT Polymer Fuses, Description: Fuse: PTC polymer; 500mA; THT; 5.1mm; Ø0.51x7.6mm, Type of fuse: PTC polymer, Current rating: 0.5A, Switched current: 1A, Max. voltage: 60V DC, Power: 770mW, Min. resistance: 500mΩ, Max resistance: 1.17Ω, Operating temperature: -40...85°C, E dimension: 3.1mm, Leads dimensions: Ø0.51x7.6mm, C dimension: 5.1mm, D dimension: 7.6mm, F dimension: 1.1mm, B dimension: 13.7mm, A dimension: 7.9mm, Terminal pitch: 5.1mm, Max surge current: 40A, Mounting: THT.
