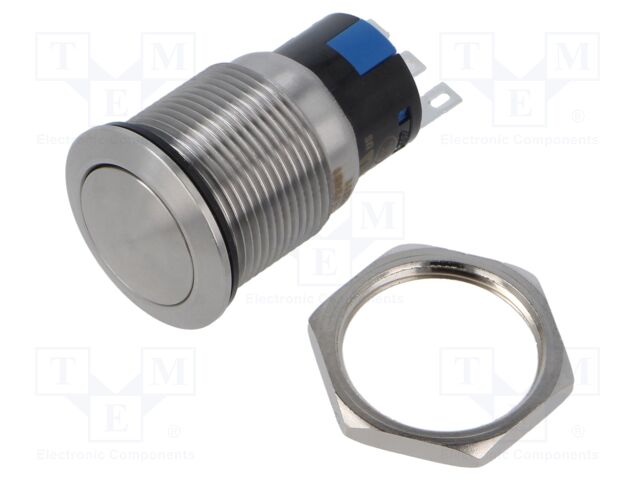

F24S1-1230NDS000 DECA SwitchLab Inc.
Виробник: DECA SwitchLab Inc.
Category: Push Button Switches
Description: Switch: vandal resistant; Pos: 2; SPDT; 2A/250VAC; 1A/30VDC; IP67
Operating temperature: -25...50°C
Leads: for soldering
Button shape: convex; round
IP rating: IP67
Illumination: none
Switching method: ON-(ON)
Body material: stainless steel
Type of switch: vandal resistant
Panel thickness: 0.5...6mm
Mounting hole diameter: Ø19mm
Dimensions: Ø21.5x36.9mm
Max. contact resistance:: 50mΩ
AC contacts rating @R: 2A / 250V AC
Stable positions number: 1
DC contacts rating @R: 1A / 30V DC
Number of positions: 2
Mechanical durability: 100000 cycles
Electrical life: 50000 cycles
Min. insulation resistance: 0.1GΩ
Contacts configuration: SPDT
| Кількість | Ціна |
|---|---|
| 1+ | 809.86 грн |
| 10+ | 672.94 грн |
| 20+ | 630.88 грн |
| 40+ | 591.35 грн |
Відгуки про товар
Написати відгук
Технічний опис F24S1-1230NDS000 DECA SwitchLab Inc.
Category: Push Button Switches, Description: Switch: vandal resistant; Pos: 2; SPDT; 2A/250VAC; 1A/30VDC; IP67, Operating temperature: -25...50°C, Leads: for soldering, Button shape: convex; round, IP rating: IP67, Illumination: none, Switching method: ON-(ON), Body material: stainless steel, Type of switch: vandal resistant, Panel thickness: 0.5...6mm, Mounting hole diameter: Ø19mm, Dimensions: Ø21.5x36.9mm, Max. contact resistance:: 50mΩ, AC contacts rating @R: 2A / 250V AC, Stable positions number: 1, DC contacts rating @R: 1A / 30V DC, Number of positions: 2, Mechanical durability: 100000 cycles, Electrical life: 50000 cycles, Min. insulation resistance: 0.1GΩ, Contacts configuration: SPDT.
