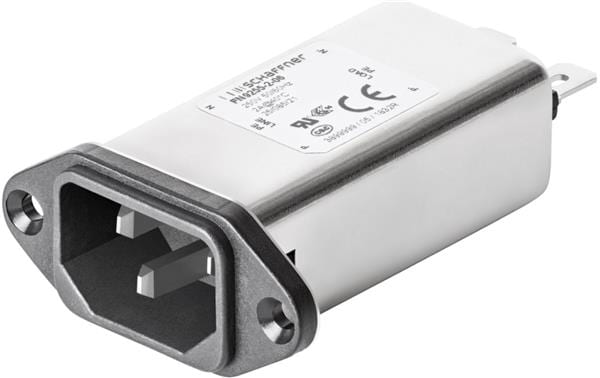

FN9255MR-4-06 SCHAFFNER
Виробник: SCHAFFNER
Category: IEC 60320 connectors
Description: Connector: AC supply; socket; male; 4A; 250VAC; C14 (E); -25÷85°C
Type of connector: AC supply
Kind of connector: male
Connector variant: C14 (E)
Mechanical mounting: back side of panel; for panel mounting; screw
Connector: socket
Connector series: FN9255
Operating temperature: -25...85°C
Current rating: 4A
Rated voltage: 250V AC
Leads: connectors 6,3x0,8mm
Leakage current: 0.45mA
Conform to the norm: CSA 22.2 No. 8; GB/T15287; GB/T15288; IEC EN 60939-3; UL 60939-3
Capacitance Cx: 0.1µF
Inductance: 2.1mH
Design: filter; two coils
Resistance: 1MΩ
кількість в упаковці: 60 шт
Category: IEC 60320 connectors
Description: Connector: AC supply; socket; male; 4A; 250VAC; C14 (E); -25÷85°C
Type of connector: AC supply
Kind of connector: male
Connector variant: C14 (E)
Mechanical mounting: back side of panel; for panel mounting; screw
Connector: socket
Connector series: FN9255
Operating temperature: -25...85°C
Current rating: 4A
Rated voltage: 250V AC
Leads: connectors 6,3x0,8mm
Leakage current: 0.45mA
Conform to the norm: CSA 22.2 No. 8; GB/T15287; GB/T15288; IEC EN 60939-3; UL 60939-3
Capacitance Cx: 0.1µF
Inductance: 2.1mH
Design: filter; two coils
Resistance: 1MΩ
кількість в упаковці: 60 шт
товар відсутній
Відгуки про товар
Написати відгук
Технічний опис FN9255MR-4-06 SCHAFFNER
Category: IEC 60320 connectors, Description: Connector: AC supply; socket; male; 4A; 250VAC; C14 (E); -25÷85°C, Type of connector: AC supply, Kind of connector: male, Connector variant: C14 (E), Mechanical mounting: back side of panel; for panel mounting; screw, Connector: socket, Connector series: FN9255, Operating temperature: -25...85°C, Current rating: 4A, Rated voltage: 250V AC, Leads: connectors 6,3x0,8mm, Leakage current: 0.45mA, Conform to the norm: CSA 22.2 No. 8; GB/T15287; GB/T15288; IEC EN 60939-3; UL 60939-3, Capacitance Cx: 0.1µF, Inductance: 2.1mH, Design: filter; two coils, Resistance: 1MΩ, кількість в упаковці: 60 шт.
