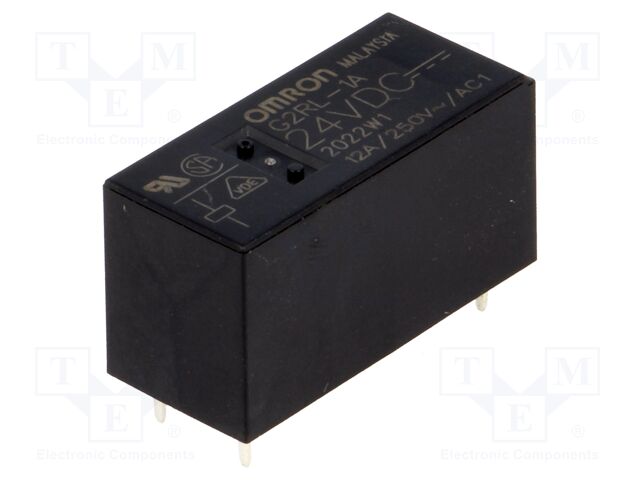

G2RL-1A 24VDC OMRON Electronic Components
Виробник: OMRON Electronic ComponentsCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 12A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 12A
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 12A / 24V DC
Manufacturer series: G2RL
Switched voltage: max. 300V DC; max. 440V AC
Relay variant: miniature
Mounting: PCB
Coil resistance: 1.44kΩ
Operate time: 15ms
Body dimensions: 29x12.7x15.7mm
Release time: 5ms
Operating temperature: -40...85°C
Contact resistance: 100mΩ
Terminal pitch: 3.5mm
Coil current: 16.7mA
Leads: for PCB
Enclosure description: standard seal
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис G2RL-1A 24VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 12A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 24V DC, Contact current max.: 12A, AC contacts rating @R: 12A / 250V AC, DC contacts rating @R: 12A / 24V DC, Manufacturer series: G2RL, Switched voltage: max. 300V DC; max. 440V AC, Relay variant: miniature, Mounting: PCB, Coil resistance: 1.44kΩ, Operate time: 15ms, Body dimensions: 29x12.7x15.7mm, Release time: 5ms, Operating temperature: -40...85°C, Contact resistance: 100mΩ, Terminal pitch: 3.5mm, Coil current: 16.7mA, Leads: for PCB, Enclosure description: standard seal, кількість в упаковці: 1 шт.
