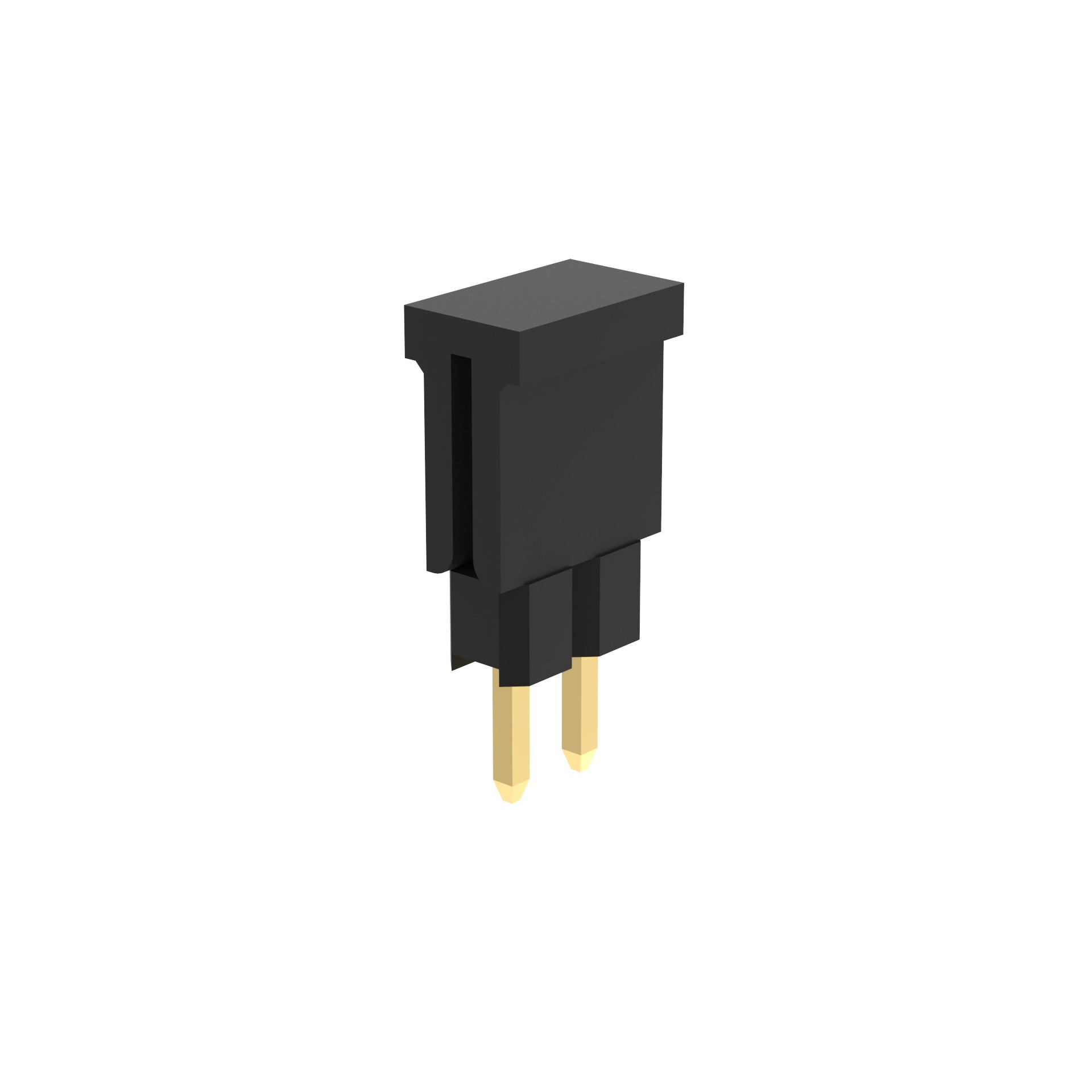

G8250021020YTEU Amphenol ICC (Commercial Products)

Description: PIN HEADER 2.0MM PITCH STR DIP,1, Features: Pick and Place, Packaging: Tape & Reel (TR), Connector Type: Header, Cuttable, Voltage Rating: 250VDC, Current Rating (Amps): 1.5A, Mounting Type: Through Hole, Number of Positions: 2, Number of Rows: 1, Style: Board to Board, Operating Temperature: -25°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Shape: Square, Contact Length - Post: 0.110" (2.79mm), Insulation Height: 0.079" (2.00mm), Shrouding: Unshrouded, Overall Contact Length: 0.346" (8.80mm), Insulation Material: Liquid Crystal Polymer (LCP), Contact Length - Mating: 0.157" (4.00mm).
