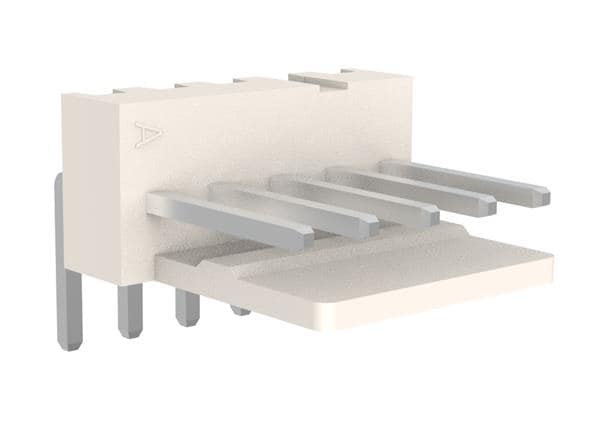

G861041122T2HR Amphenol ICC (Commercial Products)

Description: PROTECT HEADER 2.0MM PITCH STR D, Packaging: Bag, Connector Type: Header, Voltage Rating: 100VAC/DC, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 4, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 100.0µin (2.54µm), Contact Shape: Square, Contact Length - Post: 0.106" (2.69mm), Insulation Height: 0.307" (7.80mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Thermoplastic.
