GKS-101 351 050 A 1500

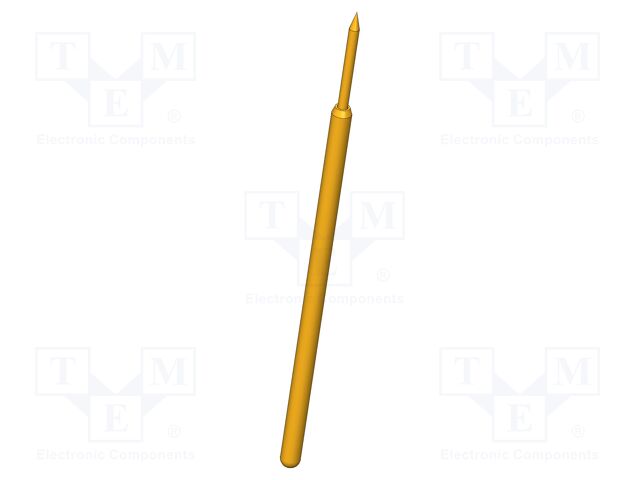

GKS-101 351 050 A 1500 INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDE9FDB8E81F6EF20D6&compId=GKS-101-0035.pdf?ci_sign=629f9caede9b9298602eb63e857f96faa82ca219 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 4A; Ø: 0.5mm
Type of test accessories: test needle
Contact plating: gold-plated
Manufacturer series: GKS-101
Test accessories features: magnetic; self-cleaning
Length: 25.3mm
Mounting: push-in
Operating temperature: -40...80°C
Tip diameter: 0.5mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Max. contact resistance:: 20mΩ
Spring compression force: 1.5N
Current rating: 4A
Blade tip shape: sharp
Contact material: CuBe
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-101 351 050 A 1500 INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 4A; Ø: 0.5mm, Type of test accessories: test needle, Contact plating: gold-plated, Manufacturer series: GKS-101, Test accessories features: magnetic; self-cleaning, Length: 25.3mm, Mounting: push-in, Operating temperature: -40...80°C, Tip diameter: 0.5mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Max. contact resistance:: 20mΩ, Spring compression force: 1.5N, Current rating: 4A, Blade tip shape: sharp, Contact material: CuBe.
