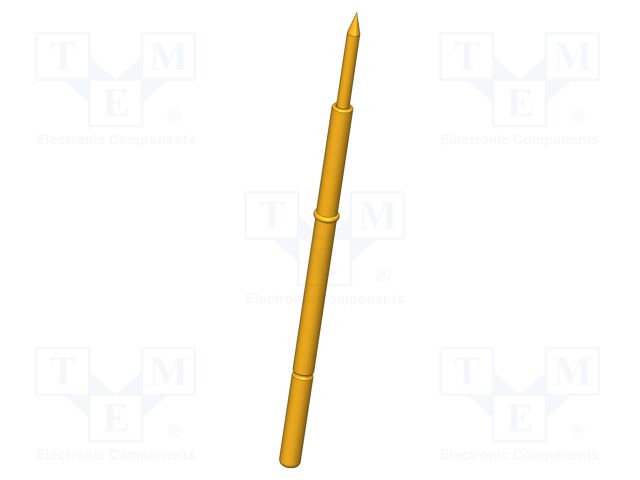

GKS-112 201 100 A 1510 C

GKS-112 201 100 A 1510 C INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A09E0AC4E080D6&compId=GKS-112-2732.pdf?ci_sign=1a17128d5060c9208e85f6ab0220ea71e601f039 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1mm; 1.5N
Manufacturer series: GKS-112
Contact plating: gold-plated
Test accessories features: magnetic; self-cleaning
Blade tip shape: needle
Mounting: push-in
Contact material: steel
Type of test accessories: test needle
Operating temperature: -100...200°C
Tip diameter: 1mm
Operational spring compression: 4mm
Maksimum spring compression: 8mm
Length: 40.3mm
Max. contact resistance:: 100mΩ
Spring compression force: 1.5N
Current rating: 5A
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-112 201 100 A 1510 C INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5A; Ø: 1mm; 1.5N, Manufacturer series: GKS-112, Contact plating: gold-plated, Test accessories features: magnetic; self-cleaning, Blade tip shape: needle, Mounting: push-in, Contact material: steel, Type of test accessories: test needle, Operating temperature: -100...200°C, Tip diameter: 1mm, Operational spring compression: 4mm, Maksimum spring compression: 8mm, Length: 40.3mm, Max. contact resistance:: 100mΩ, Spring compression force: 1.5N, Current rating: 5A.
