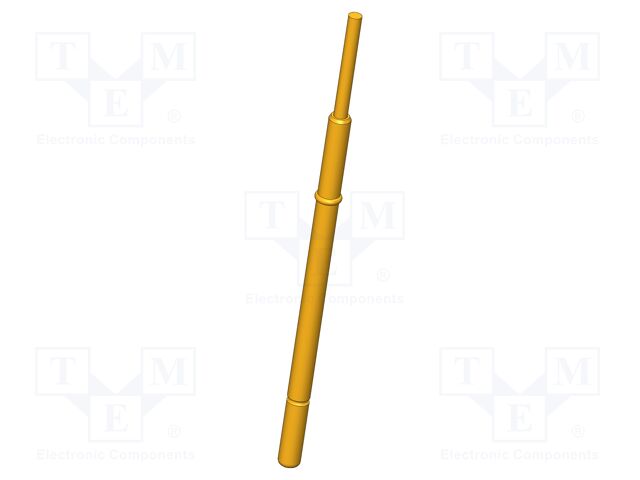

GKS-112 302 100 A 1507

GKS-112 302 100 A 1507 INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0874E6AA200D6&compId=GKS-112-1305.pdf?ci_sign=da5013f6c2f0e12759316c0b53b720c00342d153 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1mm; 1.5N
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 8mm
Current rating: 8A
Contact plating: gold-plated
Contact material: CuBe
Blade tip shape: flat
Tip diameter: 1mm
Manufacturer series: GKS-112
Operating temperature: -40...80°C
Mounting: push-in
Test accessories features: magnetic
Length: 37.3mm
Spring compression force: 1.5N
Max. contact resistance:: 20mΩ
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-112 302 100 A 1507 INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 8A; Ø: 1mm; 1.5N, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 8mm, Current rating: 8A, Contact plating: gold-plated, Contact material: CuBe, Blade tip shape: flat, Tip diameter: 1mm, Manufacturer series: GKS-112, Operating temperature: -40...80°C, Mounting: push-in, Test accessories features: magnetic, Length: 37.3mm, Spring compression force: 1.5N, Max. contact resistance:: 20mΩ.
