Продукція > INGUN > GKS-112 302 150 A 1510

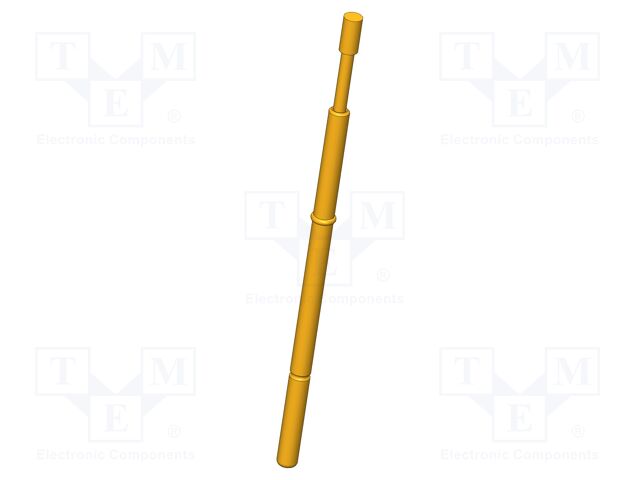

GKS-112 302 150 A 1510

GKS-112 302 150 A 1510 INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A0788D5C3CC0D6&compId=GKS-112-0254.pdf?ci_sign=987597d3a0c8ff80f52b251643e8b0789c999662 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Operational spring compression: 4mm; 5.3mm; 8A; CuBe
Mounting: push-in
Tip diameter: 1.5mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Max. contact resistance:: 20mΩ
Length: 40.3mm
Spring compression force: 1.5N
Current rating: 8A
Contact material: CuBe
Blade tip shape: cylinder; flat
Manufacturer series: GKS-112
Contact plating: gold-plated
Test accessories features: magnetic
Type of test accessories: test needle
Operating temperature: -40...80°C
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-112 302 150 A 1510 INGUN

Category: Contact Probes, Description: Test needle; Operational spring compression: 4mm; 5.3mm; 8A; CuBe, Mounting: push-in, Tip diameter: 1.5mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Max. contact resistance:: 20mΩ, Length: 40.3mm, Spring compression force: 1.5N, Current rating: 8A, Contact material: CuBe, Blade tip shape: cylinder; flat, Manufacturer series: GKS-112, Contact plating: gold-plated, Test accessories features: magnetic, Type of test accessories: test needle, Operating temperature: -40...80°C.
