Продукція > INGUN > GKS-112 302 200 A 0808

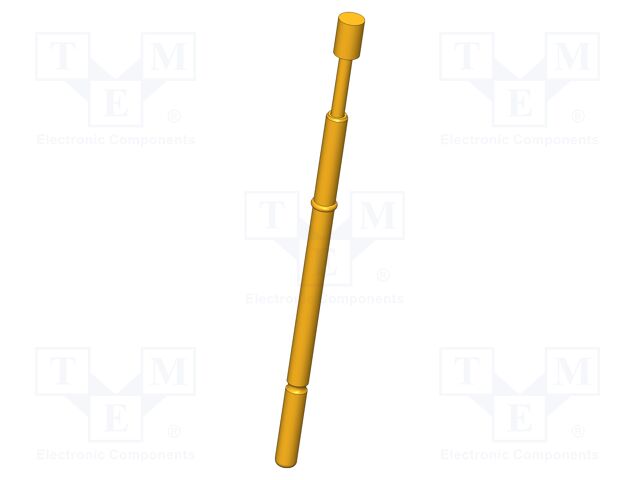

GKS-112 302 200 A 0808

GKS-112 302 200 A 0808 INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A087CFC5F2A0D6&compId=GKS-112-1361.pdf?ci_sign=7c7cb76911703fb1b62c88402ffd08be00e440fe Виробник: INGUN
Category: Contact Probes
Description: Test needle; Spring compression: 4mm; 5.3mm; 5A; CuBe; gold-plated
Blade tip shape: cylinder; flat
Contact material: CuBe
Contact plating: gold-plated
Test accessories features: magnetic
Mounting: push-in
Type of test accessories: test needle
Operating temperature: -40...80°C
Tip diameter: 2mm
Operational spring compression: 4mm
Maksimum spring compression: 5.3mm
Max. contact resistance:: 20mΩ
Length: 38.7mm
Spring compression force: 0.8N
Current rating: 5A
Manufacturer series: GKS-112
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-112 302 200 A 0808 INGUN

Category: Contact Probes, Description: Test needle; Spring compression: 4mm; 5.3mm; 5A; CuBe; gold-plated, Blade tip shape: cylinder; flat, Contact material: CuBe, Contact plating: gold-plated, Test accessories features: magnetic, Mounting: push-in, Type of test accessories: test needle, Operating temperature: -40...80°C, Tip diameter: 2mm, Operational spring compression: 4mm, Maksimum spring compression: 5.3mm, Max. contact resistance:: 20mΩ, Length: 38.7mm, Spring compression force: 0.8N, Current rating: 5A, Manufacturer series: GKS-112.
