Продукція > INGUN > GKS-112 305 063 A 1502 MT

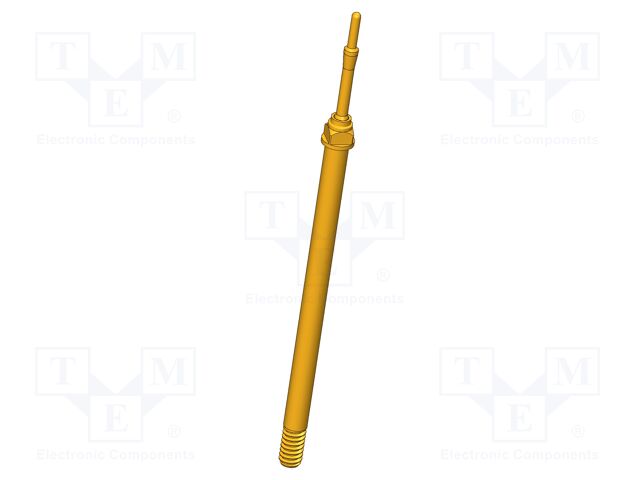

GKS-112 305 063 A 1502 MT

GKS-112 305 063 A 1502 MT INGUN

pVersion=0046&contRep=ZT&docId=005056AB281E1EDF83A08478B34600D6&compId=GKS-112-1097.pdf?ci_sign=db80ebee422065d3de41e777540238ee0165eca8 Виробник: INGUN
Category: Contact Probes
Description: Test needle; Spring compression: 4mm; 8mm; 8A; CuBe; gold-plated
Type of test accessories: test needle
Operational spring compression: 4mm
Maksimum spring compression: 8mm
Current rating: 8A
Contact material: CuBe
Contact plating: gold-plated
Tip diameter: 0.63mm
Blade tip shape: round
Manufacturer series: GKS-112
Max. contact resistance:: 20mΩ
Operating temperature: -40...80°C
Mounting: screw-in
Test accessories features: magnetic
Length: 35.8mm
Spring compression force: 1.5N
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис GKS-112 305 063 A 1502 MT INGUN

Category: Contact Probes, Description: Test needle; Spring compression: 4mm; 8mm; 8A; CuBe; gold-plated, Type of test accessories: test needle, Operational spring compression: 4mm, Maksimum spring compression: 8mm, Current rating: 8A, Contact material: CuBe, Contact plating: gold-plated, Tip diameter: 0.63mm, Blade tip shape: round, Manufacturer series: GKS-112, Max. contact resistance:: 20mΩ, Operating temperature: -40...80°C, Mounting: screw-in, Test accessories features: magnetic, Length: 35.8mm, Spring compression force: 1.5N.
